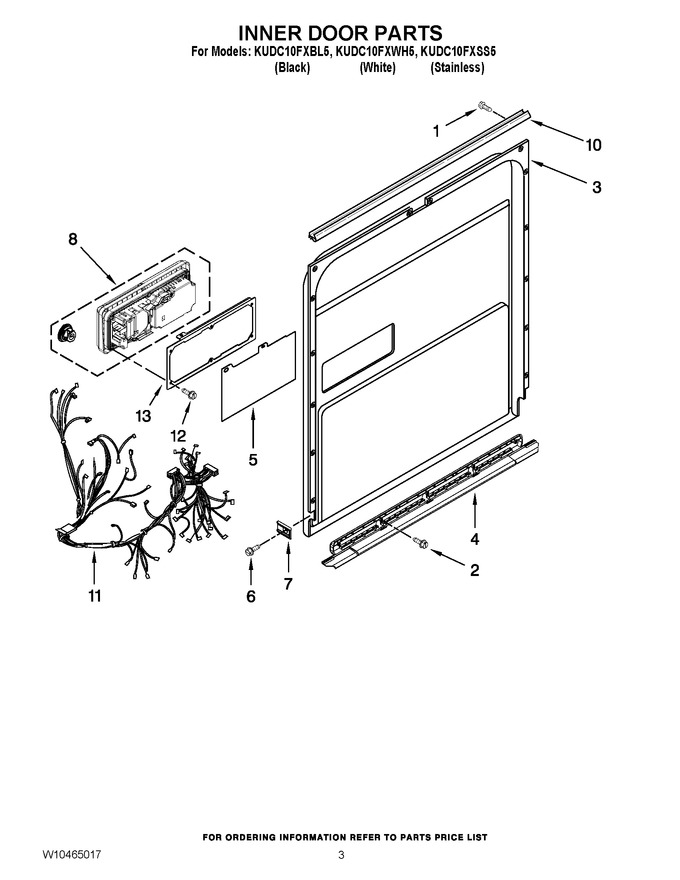

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10309090 | Screw, Door (Replaces: W10309090) |
|
Immediately | $ 76.86 | ||||
| 2 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.72 | |||||
| 3 | WPW10480715 | Inner Door & Mastic Assembly (Replaces: W10418364) |
|
$ 395.94 | |||||
| 4 | WPW10497235 | Seal-door Bottom (Replaces: W10195543) |
|
Immediately | $ 10.19 | ||||
| 5 | W10385977 | Shield, Dispenser |
|
$ 30.61 | |||||
| 6 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 7 | W10195837 | Barrier, Vapor Door |
|
$ 30.01 | |||||
| 8 | W11032769 | Dispenser, Assembly (Replaces: W10304408) |
|
Immediately | $ 135.92 | ||||
| 10 | WPW10195007 | Seal, Console/door (Replaces: W10195007) |
|
$ 166.86 | |||||
| 11 | W10871222 | Wiring Harness (Replaces: W10434879) |
|
Immediately | $ 168.79 | ||||
| 12 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 13 | WPW10462232 | Bracket, Dispenser (Replaces: W10341423) |
|
$ 37.79 |
