SELECT A DIAGRAM

01 - Cabinet Parts

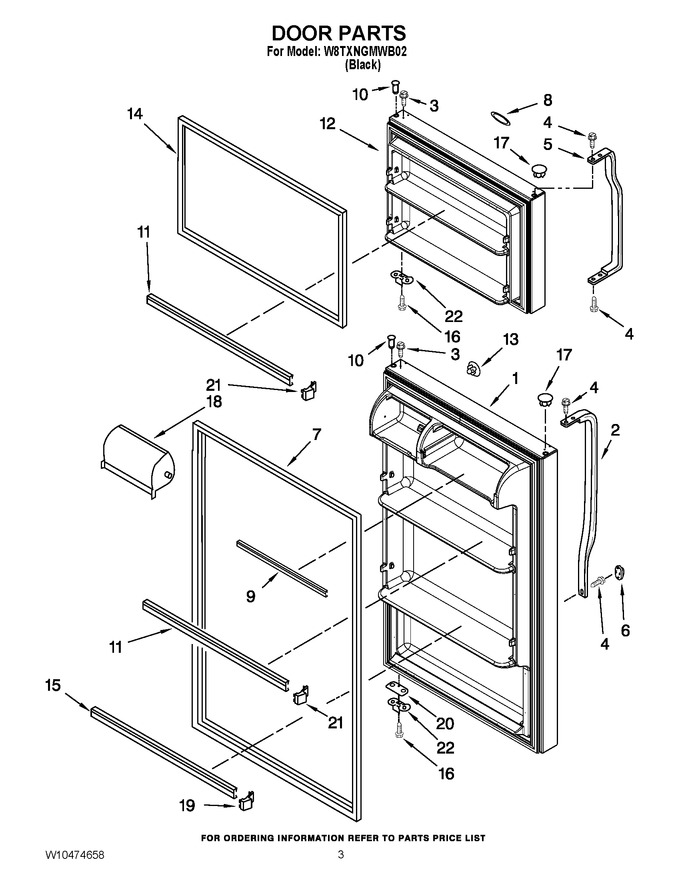

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2264750B		Refrigerator Door (includes Items 7 & 10)		Appelez-nous	-
2	WP2326169B		Handle, Refrigerator   (Replaces: 2326169B)				$ 154.75
3	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 8.37
4	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
5	2202098B		Handle, Freezer				$ 151.23
6	WP2202819B		Screw Cover, Handle   (Replaces: 2202819B)				$ 11.43
7	WP2319264B		Door Gasket, Magnetic   (Replaces: 2264723)				$ 323.85
8	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
9	W11129820		Trim, Door Shelf   (Replaces: W10234242)			Immediately	$ 127.34
10	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
11	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 120.57
12	2263254B		Freezer Door (includes Items 10 & 14)		Appelez-nous	-
13	WP2189009		Hole Plug   (Replaces: 2189009)				$ 7.61
14	WP2319263B		Door Gasket, Magnetic   (Replaces: 2264722)				$ 268.28
15	WP2266738		Trim, Door Shelf   (Replaces: 2266738)				$ 111.69
16	WP488921		Screw 8-15 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
17	WP2212651		Hole Plug, Handle   (Replaces: 2212651)				$ 24.21
18	WP2207942		Door Compartment   (Replaces: 2207942)			Immediately	$ 73.21
19	WP2195916K		End Cap, Trim (bottom)   (Replaces: 2195916)			Immediately	$ 13.18
20	2258681B		Shim, Door Stop				$ 45.33
21	WP2156003		End Cap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
22	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37

    View Diagram in Separate Window       Print Part List
