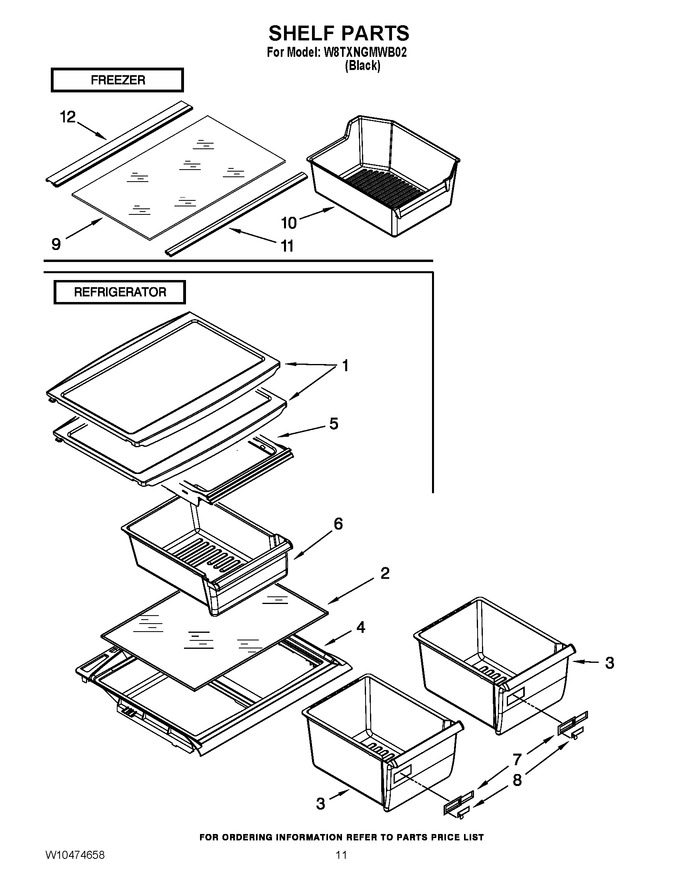

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11181679 | Shelf (Replaces: W10283851) |
|
$ 263.79 | |||||
| 2 | WP2262441 | Glass Cover (Replaces: 2262441) |
|
Immediately | $ 232.92 | ||||
| 3 | W10804447 | Crisper Pan (Replaces: 2252931) |
|
Immediately | $ 174.17 | ||||
| 4 | WP2222031 | Cover, Crisper (Replaces: W10250666) |
|
Immediately | $ 260.25 | ||||
| 5 | W10258418 | Holder, Meat Pan |
|
$ 70.54 | |||||
| 6 | WP2261934 | Meat Pan (Replaces: 2261934) |
|
Immediately | $ 151.19 | ||||
| 7 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.81 | |||||
| 8 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 9 | W10283871 | Glass, Shelf |
|
$ 88.25 | |||||
| 10 | W11625904 | Pan, Ice Cube (Replaces: 2166261) |
|
$ 67.83 | |||||
| 11 | WPW10283860 | Trim, Front (Replaces: W10272377) |
|
$ 280.70 | |||||
| 12 | WPW10283860 | Trim, Rear (Replaces: W10272381) |
|
$ 280.70 |
