01 - Cooktop Parts

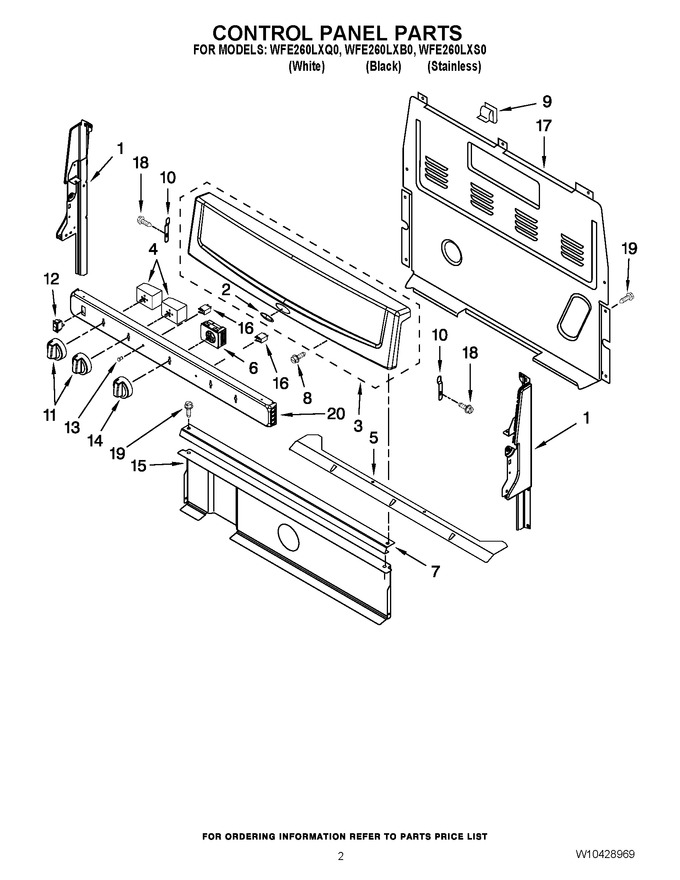

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap, Left Hand (black) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219365 | Endcap, Left Hand (white) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap, Right Hand (white) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219665 | Endcap, Right Hand (black) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | W10209617 | Nameplate |
|
$ 35.30 | |||||
| 3 | W10312476 | Panel, Backguard (white) |
|
- | |||||
| 3 | W10312477 | Panel, Backguard (black) |
|
- | |||||
| 3 | W10366137 | Panel, Backguard (stainless) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | W10356438 | Shield, Manifold |
|
- | |||||
| 6 | WPW10363198 | Switch, Selector (Replaces: W10363198) |
|
$ 223.83 | |||||
| 7 | W10525121 | Brkt-mntg Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 8 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 9 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 10 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 11 | W11229681 | Knob, Infinite (white) (Replaces: W10312466) |
|
- | |||||
| 11 | W10312467 | Knob, Infinite (black) |
|
- | |||||
| 12 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 12 | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 93.95 | |||||
| 13 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 14 | W10366132 | Knob, Thermostat (black) |
|
- | |||||
| 14 | W10366133 | Knob, Thermostat (white) |
|
- | |||||
| 15 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 16 | WP8523265 | Indicator, 125v (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 17 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 18 | 3196166 | Screw |
|
$ 7.36 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W10356277 | Panel, Manifold (black) |
|
- | |||||
| 20 | W10356276 | Panel, Manifold (white) |
|
- |
