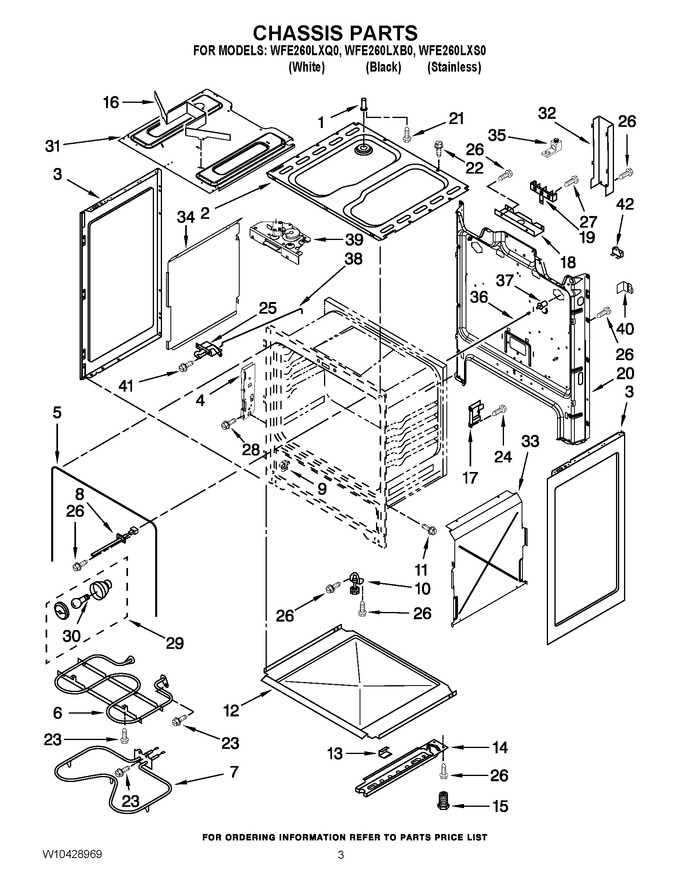

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10393499 | Vent Tube |
|
- | |||||
| 2 | W10387238 | Box-burner |
|
- | |||||
| 3 | WPW10575396 | Panel, Side (white-textured) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 3 | W11730303 | Panel, Side (black-textured) (Replaces: W10322770) |
|
Immediately | $ 178.50 | ||||
| 4 | W10647259 | Brkt-mounting (Replaces: 9760407) |
|
Immediately | $ 9.32 | ||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 7 | W11447783 | Element, Bake (Replaces: W10312465) |
|
Immediately | $ 84.36 | ||||
| 8 | WPW10181986 | Sensor (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 9 | WPW10114344 | Glide, Drawer Frnt (Replaces: W10114344) |
|
Immediately | $ 8.57 | ||||
| 10 | WPW10341186 | Assembly Foot, Front (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 12 | W10312471 | Tray, Insulation |
|
$ 72.08 | |||||
| 13 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 14 | W11818353 | Rail, Base (Replaces: 9760314) |
|
$ 62.66 | |||||
| 15 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 16 | W10391967 | Deflector, Box |
|
- | |||||
| 17 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 17.69 | |||||
| 18 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 19 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 20 | W10224919 | Back, Main |
|
$ 256.41 | |||||
| 21 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 22 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 23 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 24 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 25 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 256.36 | |||||
| 26 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 27 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 28 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 29 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 30 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 31 | W10316861 | Box, Gas Burner |
|
- | |||||
| 32 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 139.60 | |||||
| 33 | 9761448 | Retainer, Rh |
|
- | |||||
| 34 | 9761449 | Retainer, Lh |
|
$ 333.51 | |||||
| 35 | WPW10281322 | Kit, Bare Wire (Replaces: W10281322) |
|
$ 8.87 | |||||
| 36 | 9757239 | Rod - Door Switch |
|
$ 96.37 | |||||
| 37 | 9757238 | Switch - Door |
|
$ 64.08 | |||||
| 38 | W10078370 | Rod, Latch |
|
$ 95.24 | |||||
| 39 | WPW10107830 | Latch, Motor (Replaces: W10107830) |
|
$ 339.48 | |||||
| 40 | W10312473 | Shield, Electric |
|
- | |||||
| 41 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 42 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| NI | W10393501 | Insulation, Wrap |
|
- | |||||
| NI | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 115.11 |
