SELECT A DIAGRAM

01 - Cover Sheet

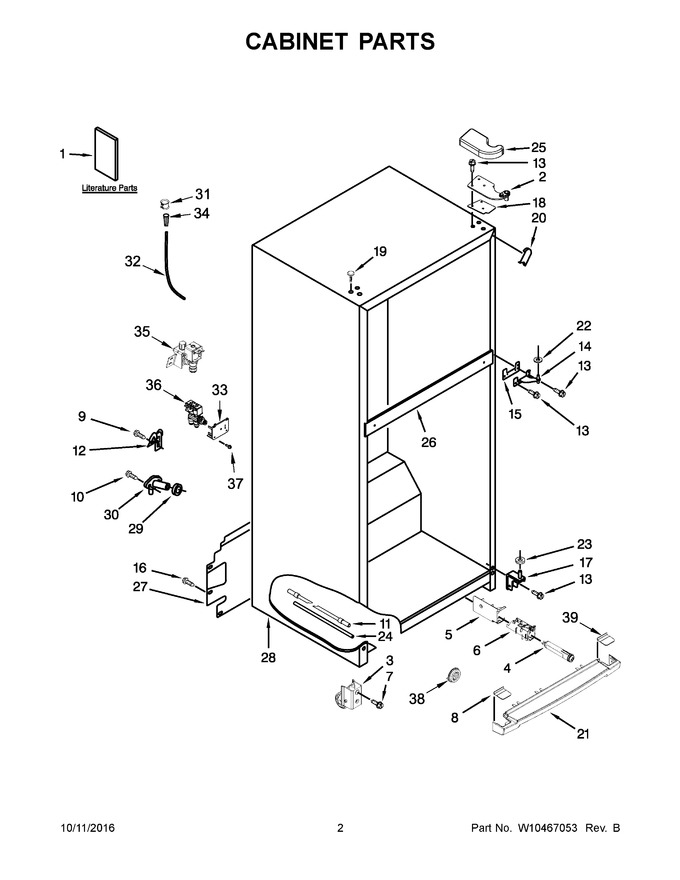

02 - Cabinet Parts


03 - Liner And Icemaker Parts


04 - Shelf Parts


05 - Freezer Door Parts


06 - Refrigerator Door Parts


07 - Unit Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10426697		Energy Label		Appelez-nous	-
2	WPW10300065		Assembly, Top Right Hinge   (Replaces: W10300065)				$ 13.94
3	W10849386		Assembly, Roller   (Replaces: W10327136)				$ 114.75
4	EDR1RXD1B		Filter, Water   (Replaces: W10735398)			Immediately	$ 49.99
5	WPW10306392		Cover, Water Filter   (Replaces: W10306392)				$ 106.06
6	W10844267		Housing, Water Filter   (Replaces: W10817430)			Immediately	$ 142.29
7	3400524		Bolt   (Replaces: W10142287)				$ 13.28
8	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	W10306393		Tube, Filter Inlet				$ 56.31
12	549193		Clamp, Power Cord				$ 14.06
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
14	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
15	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
16	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
17	WP2254473		Hinge, Bottom   (Replaces: 2254473)				$ 9.28
18	W10883637		Shim, Top Hinge				$ 15.95
19	WPW10520304		Plug, Hole (white)   (Replaces: W10520304)			Immediately	$ 19.22
20	WPW10283959		Filler, Corner (white)   (Replaces: W10283959)				$ 8.21
21	WPW10300129		Grille (white)   (Replaces: W10300129)				$ 109.55
22	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
23	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.88
24	W10306394		Tube, Filter Outlet				$ 54.60
25	W10465765		Cover, Hinge (left Hand (white))				$ 20.57
26	N/P		Rail, Center (not Serviced)		Appelez-nous	-
27	WPW10384414		Cover, Unit   (Replaces: W10384414)				$ 106.82
28	N/P		Cabinet (not Serviced)		Appelez-nous	-
29	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
30	WPW10601149		Fitting, Water Tube   (Replaces: W10601149)			Immediately	$ 8.56
31	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 65.90
32	2003812		Tube, Water Inlet		Appelez-nous	-
33	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 80.75
34	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
35	WPW10238100		Valve, Inlet   (Replaces: W10498992)			Immediately	$ 210.55
36	WPW10279866		Assembly, Dual Valve   (Replaces: W10279866)			Immediately	$ 138.28
37	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
38	W10331226		Drum, Toe Grille				$ 47.42
39	W10381059		Cover, Toe Grille (hinge Side) (white)				$ 87.57
19A	WPW10520305		Plug, Hole (black)   (Replaces: W10520305)				$ 19.18
19B	WPW10520307		Plug, Hole (grey)   (Replaces: W10520307)			Immediately	$ 7.55
1A	W10551699		Use And Care Guide		Appelez-nous	-
1B	2225623		Icemaker Service Sheet		Appelez-nous	-
20A	W11252732		Filler, Corner (black)   (Replaces: W10283960)				$ 13.07
20B	W10851579		Filler, Corner (grey)   (Replaces: W10283961)			Immediately	$ 7.55
21A	WPW10353939		Grille (black)   (Replaces: W10353939)				$ 169.90
21B	WPW10353941		Grille (grey)   (Replaces: W10353941)				$ 153.23
25A	W10465764		Cover, Hinge (right Hand (white))				$ 21.51
25B	W10465771		Cover, Hinge (left Hand (black))				$ 19.76
25C	W10465770		Cover, Hinge (right Hand (black))				$ 22.77
25D	W10465768		Cover, Hinge (left Hand (grey))				$ 20.53
25E	W10465767		Cover, Hinge (right Hand (grey))			Immediately	$ 21.46
39A	W10381060		Cover, Toe Grille (hinge Side) (black)				$ 36.12
39B	W10381064		Cover, Toe Grille (hinge Side) (grey)				$ 70.38
8A	W10353930		Cover, Toe Grille (black)				$ 85.34
8B	WPW10353932		Cover, Toe Grille (grey)   (Replaces: W10353932)				$ 85.50
