View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner And Icemaker Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Refrigerator Door Parts
07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

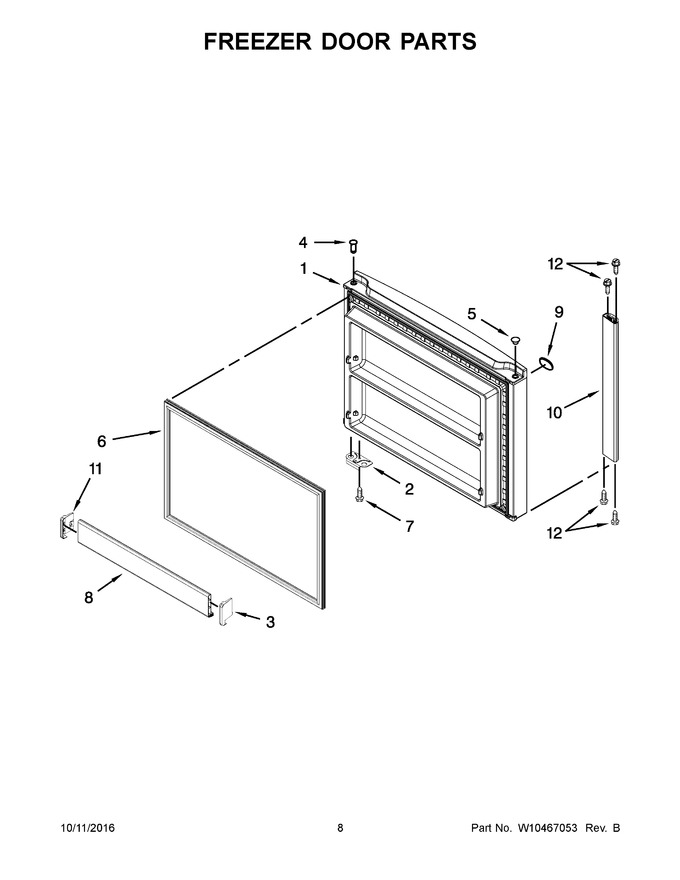

| 1 | W10330392 | Freezer Door (includes Items 4, 5, 6 & 10) (white) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | W10308871 | Cap, Trim End (right Hand) |
|
$ 10.44 | |||||
| 4 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 5 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159060 | Door Gasket, Magnetic (beige) (Replaces: 2214967) |
|
$ 336.01 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 8 | WPW10469912 | Trim, Door Shelf (Replaces: W10469912) |
|
$ 170.45 | |||||
| 9 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 10 | W10323486 | Handle, Embedded |
|
$ 45.50 | |||||
| 11 | W10338485 | Cap, Trim End (left Hand) |
|
$ 10.41 | |||||
| 12 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 1A | W10354738 | Freezer Door (includes Items 4, 5, 6 & 10) (black) |
|
- | |||||
| 1B | W10354740 | Freezer Door (includes Items 4, 5, 6 & 10) (stainless) |
|
- | |||||
| 5A | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5B | WP2254517 | Hole Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 6A | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 335.31 | |||||
| 6B | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 279.10 | ||||
| 9A | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 |
