SELECT A DIAGRAM

01 - Top Burner

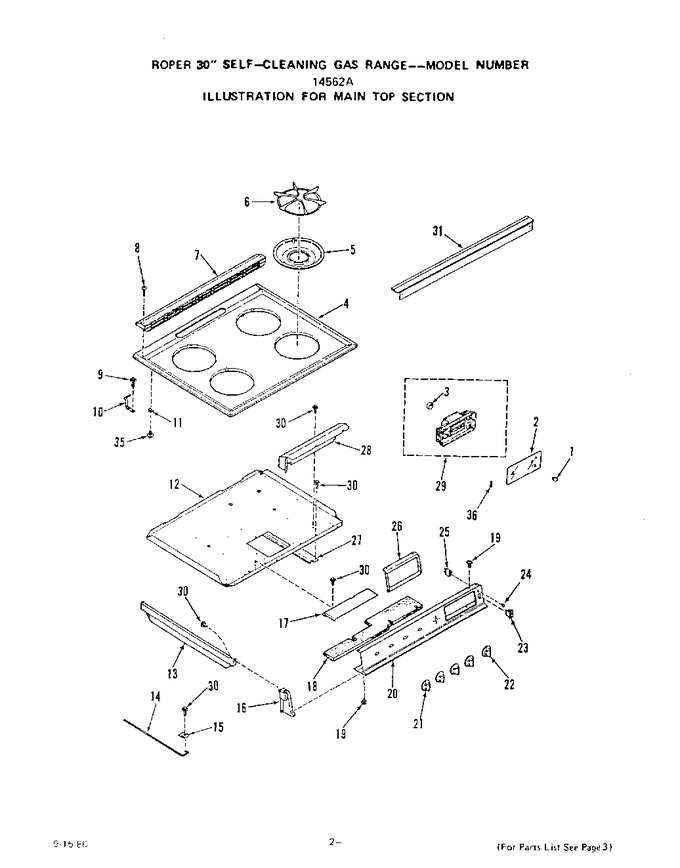

02 - Main Top


03 - Power Lock


04 - Broiler And Oven Burner


05 - Oven Body


06 - Oven Door


07 - Wire Harness , Backsplash , Grid


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	294810		Knob-clock (minute Minder)		Appelez-nous	-
1	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
2	330403		Glass-clock		Appelez-nous	-
3	327309		Motor-clock		Appelez-nous	-
4	334861		Main Top (white)		Appelez-nous	-
4	334858		Main Top (chrome)		Appelez-nous	-
4	334862		Main Top (almond)		Appelez-nous	-
5	330427		Aeration Pan (4 Req)		Appelez-nous	-
6	316786		Top Grate (4 Req)		Appelez-nous	-
7	330738		Cover-vent		Appelez-nous	-
8	332285		Screw 6-32		Appelez-nous	-
9	78565		Screw 8-32x3/16``		Appelez-nous	-
10	334844		Hinge-main Top (left)		Appelez-nous	-
10	334843		Hinge-main Top (right)		Appelez-nous	-
11	335161		Bracket-hinge		Appelez-nous	-
12	330368		Burner Box Bottom		Appelez-nous	-
13	334877		Extension-burner Box Side		Appelez-nous	-
14	326066		Rod-main Top		Appelez-nous	-
15	326348		Clamp		Appelez-nous	-
16	330344		End Cap-manifold Panel (left)		Appelez-nous	-
16	330345		End Cap-manifold Panel (right)		Appelez-nous	-
17	331123		Cover-insulation		Appelez-nous	-
18	331092		Insulation		Appelez-nous	-
19	316849		Screw-10-32x1/2``		Appelez-nous	-
20	331382		Manifold Panel		Appelez-nous	-
21	327485		Knob-gas Valve (4 Req)		Appelez-nous	-
22	328806		Knob-thermostat		Appelez-nous	-
23	334649		Switch-oven Light		Appelez-nous	-
24	331705		Lens-indicator Light		Appelez-nous	-
25	331716		Light-indicator		Appelez-nous	-
26	330337		Bracket-clock		Appelez-nous	-
27	330558		Stiffener-burner Box Bottom		Appelez-nous	-
28	330356		Cover-wire		Appelez-nous	-
29	330401		Clock		Appelez-nous	-
30	327320		Screw 10-16x7/16``		Appelez-nous	-
31	331228		Filler-main Top Rear		Appelez-nous	-
35	286628		Screw 10-32x5/16``		Appelez-nous	-
36	335073		Clip-clock Bezel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
