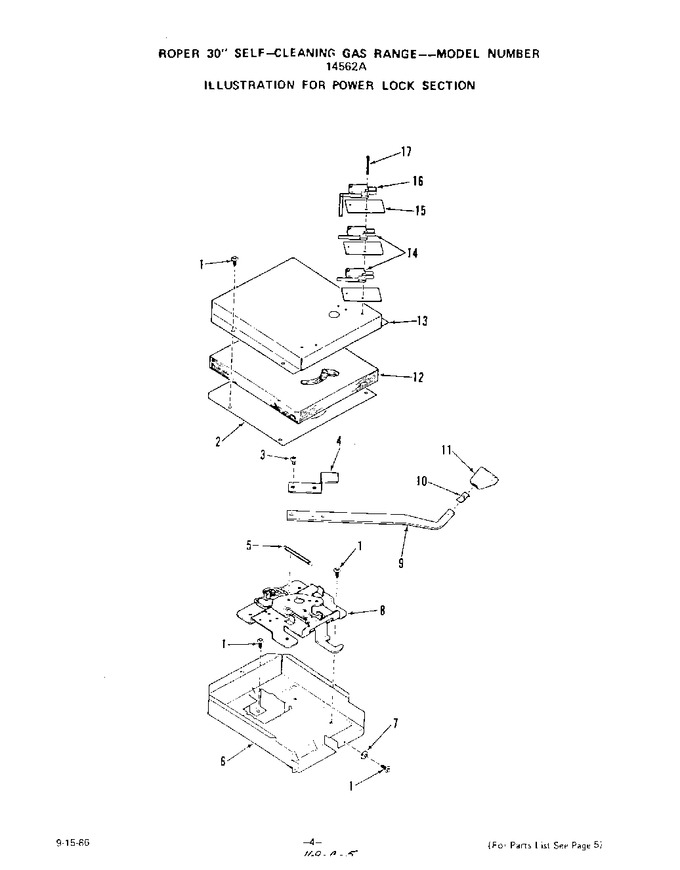

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	331120		Support-insulation		Appelez-nous	-
3	78570		Screw 10-32x5/16``		Appelez-nous	-
4	330737		Extension-handle		Appelez-nous	-
5	313075		Spring		Appelez-nous	-
6	328489		Lock Box		Appelez-nous	-
7	21067		Washer		Appelez-nous	-
8	328656		Latch Assm. (inc`s. Key 7)		Appelez-nous	-
9	333710		Handle-latch		Appelez-nous	-
10	335692		Clip-knob		Appelez-nous	-
11	328475		Knob-lock		Appelez-nous	-
12	331031		Insulation-latch		Appelez-nous	-
13	330732		Cover-lock Box		Appelez-nous	-
14	331471		Switch-micro		Appelez-nous	-
15	329171		Insulator-switch (3 Req)		Appelez-nous	-
16	331080		Switch-micro		Appelez-nous	-
17	331081		Screw 4-40 X1 9/16``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
