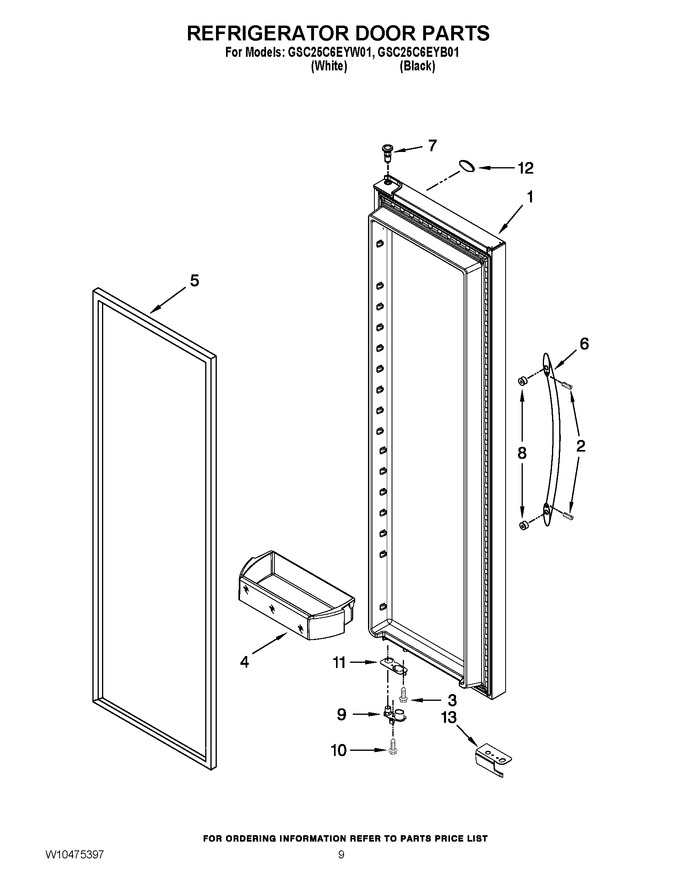

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313087		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
1	W10372833		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
2	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	WPW10335220		Door Bin, Gallon   (Replaces: W10335219)				$ 93.59
5	W11625680		Door Gasket, Magnetic (black)   (Replaces: W10249914)		Appelez-nous	-
5	W11624999		Door Gasket, Magnetic (mist Beige)   (Replaces: W10249910)				$ 374.97
6	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 174.11
6	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 174.11
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
9	WPW10257201		Door Closer, Upper Cam (black)   (Replaces: W10257201)				$ 12.93
9	WPW10248011		Door Closer, Upper Cam (white)   (Replaces: W10248011)				$ 12.93
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop (chrome)   (Replaces: W10247909)				$ 80.24
12	2220214		Nameplate				$ 32.43
13	W10257216		Cover, Door Stop (black)		Appelez-nous	-
13	W10789144		Cover, Door Stop (white)   (Replaces: W10248013)				$ 19.38
