SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)

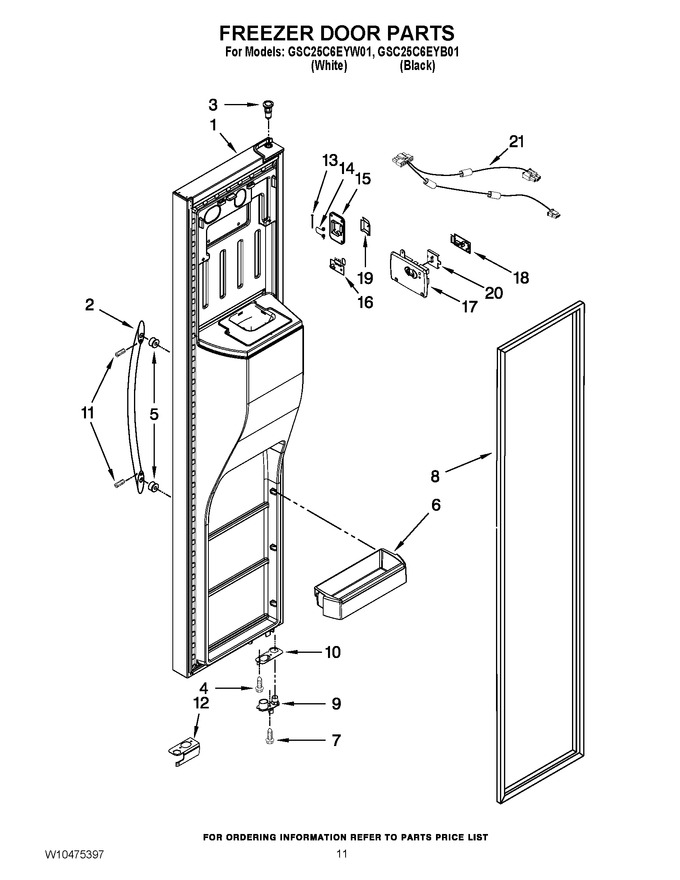

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10399711		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10399712		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 174.11
2	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 174.11
3	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
6	WPW10335218		Door Bin   (Replaces: W10335217)				$ 68.15
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	W10249915		Door Gasket, Magnetic (black)		Appelez-nous	-
8	W11625001		Door Gasket, Magnetic (mist Beige)   (Replaces: W10249911)				$ 318.78
9	W11607100		Door Closer, Upper Cam (black)   (Replaces: W10257204)			Immediately	$ 13.98
9	WPW10248015		Door Closer, Upper Cam (white)   (Replaces: W10248015)				$ 12.85
10	W11293380		Bracket, Door Stop (chrome)   (Replaces: W10247907)				$ 69.21
11	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
12	W10632060		Cover, Door Stop (black)   (Replaces: W10257221)				$ 22.30
12	W10632059		Cover, Door Stop (white)   (Replaces: W10257220)				$ 23.46
13	WP2198634		Pin   (Replaces: 2198634)				$ 18.65
14	WP2198635		Spring   (Replaces: 2198635)				$ 91.43
15	W10258502		Cover, Emitter				$ 89.74
16	W10870822		P. C. Board, Emitter   (Replaces: W10180607)			Immediately	$ 222.54
17	W11763407		Cover, Receiver   (Replaces: W10258510)				$ 44.50
18	W11813704		P. C. Board, Receiver   (Replaces: W10296530)			Immediately	$ 328.97
19	WPW10258520		Flipper   (Replaces: W10258520)				$ 79.65
20	W10258540		Slide, Ice Make Shut Off				$ 11.15
21	W10242369		Harness, Emitter & Receiver				$ 132.58

    View Diagram in Separate Window       Print Part List
