SELECT A DIAGRAM

01 - Motor And Drive, Lit/optional

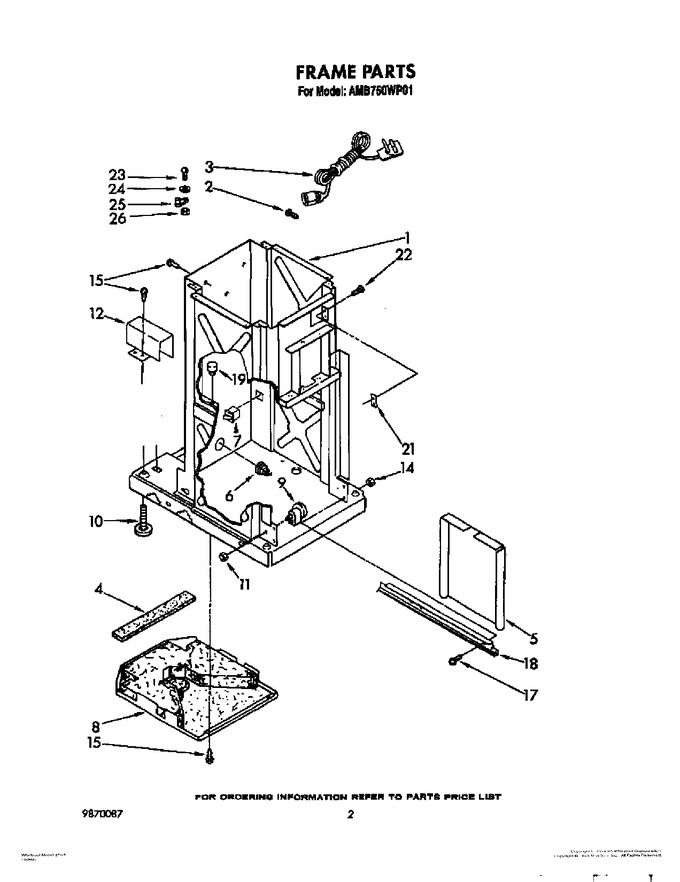

02 - Frame


03 - Powerscrew And Ram


04 - Cabinet And Control


05 - Container


06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Frame (not A Serviceable Part)		Appelez-nous	-
2	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 7.08
3	778583		Cord, Power		Appelez-nous	-
4	776780		Barrier, Glass		Appelez-nous	-
5	780412		Insulation, Inner Panel		Appelez-nous	-
6	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
7	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
8	WP780437		Pan, Bottom   (Replaces: 780437)				$ 316.61
9	882688		Bearing, Roller (2)   (Replaces: 4153788)				$ 21.19
10	WPW10001130		Bolt, Leveler   (Replaces: 775526)			Immediately	$ 7.80
11	WP776356		Locknut, 3/8-24   (Replaces: 776356)				$ 8.53
12	608375		Shield, Slide Track (2)		Appelez-nous	-
14	776188		Nut, 6-32		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
17	WP486754		Screw, 6-32 X 3/8   (Replaces: 777458)				$ 8.01
18	00608091		Frame, Slide (l.h.)   (Replaces: 608091)				$ 48.96
18	00608090		Frame, Slide (r.h.)   (Replaces: 608090)				$ 47.22
19	775643		Bumper, Ram (4)		Appelez-nous	-
21	777850		Plate, Nut				$ 77.13
22	777849		Screw, 6-20 X 1				$ 7.36
23	776516		Screw, 10-24 X 1		Appelez-nous	-
24	138479		Washer		Appelez-nous	-
25	236278		Lug, Grounding		Appelez-nous	-
26	776515		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
