Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9870028 Cabinet Appelez-nous -
2 WP489069 Screw, 8 X 1/2ab   (Replaces: 776076) In-Stock Immediately $ 8.40

3 608336 Plate, Power Cord Appelez-nous -
4 776017 Clip, Toe Mount Appelez-nous -
7 608533 Holder, Deodorant Storage Appelez-nous -
8 780191 Knob, Switch Appelez-nous -
10 W11705832 Clamp, Wire   (Replaces: 777035) Appelez-nous -
11 608815 Top, Cabinet Storage Appelez-nous -
13 WP4387911 Switch, Drawer Tilt   (Replaces: 4152058) In-Stock Immediately $ 41.64

14 675382 Switch, Rotary   (Replaces: 780379) Special Order $ 246.48

15 776559 Screw, 6-20 X 3/8ab Appelez-nous -
16 4151493 Escutcheon, Control Appelez-nous -
19 4151481 Insert, Decorative Appelez-nous -
22 776519 Bushing, Power Cord Appelez-nous -
24 WP777383 Nut, Switch   (Replaces: 777383) Special Order $ 12.83

27 4152349 Plug, Hole Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

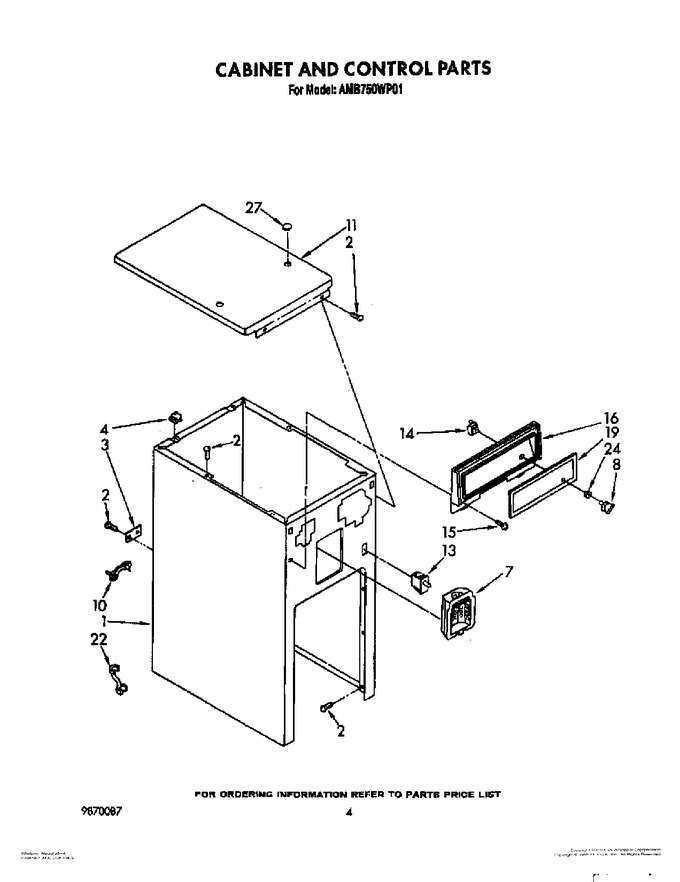

Diagram for AMB750WP01
