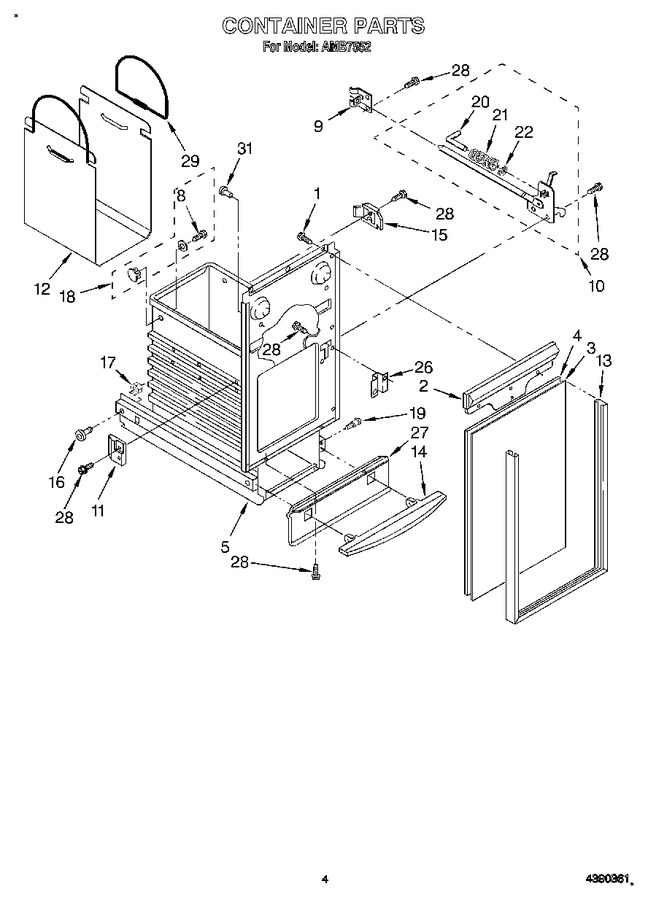

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 7.86
2	WP608732		Handle, Container   (Replaces: 4152888)				$ 251.80
3	777941		Panel, Container Front (black & White)				$ 36.40
4	777784		Spacer, Center Panel		Appelez-nous	-
5	884573		Container Assembly				$ 308.55
8	4153701		Screw		Appelez-nous	-
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 93.43
10	675379		Latch Assembly   (Replaces: 9870066)				$ 173.84
11	9870774		Guide, Container (2)		Appelez-nous	-
12	13030RP		Carrier, Bag (includes Item No.29)   (Replaces: 776989)			Immediately	$ 55.55
13	9870490		Trim, Container		Appelez-nous	-
14	W11679165		Pedal, Foot   (Replaces: 4149672)				$ 59.49
15	9871125		Actuator, Saftey Switch				$ 27.97
16	WP9871602		Bearing Roller Container (2)   (Replaces: 776261)				$ 13.21
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 7.85
18	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
19	WP780263		Screw, Shoulder 8-16 X 7/16 (2)   (Replaces: 780263)				$ 7.85
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring				$ 89.33
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
26	775665		Plate, Latch				$ 59.42
27	WPW10242557		Guard, Toeplate   (Replaces: 777328)				$ 135.74
28	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 7.86
29	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 35.23
31	775785		Bumper, Container (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
