SELECT A DIAGRAM
01 - Motor And Drive, Literature
02 - Frame
03 - Powerscrew And Ram
04 - Container

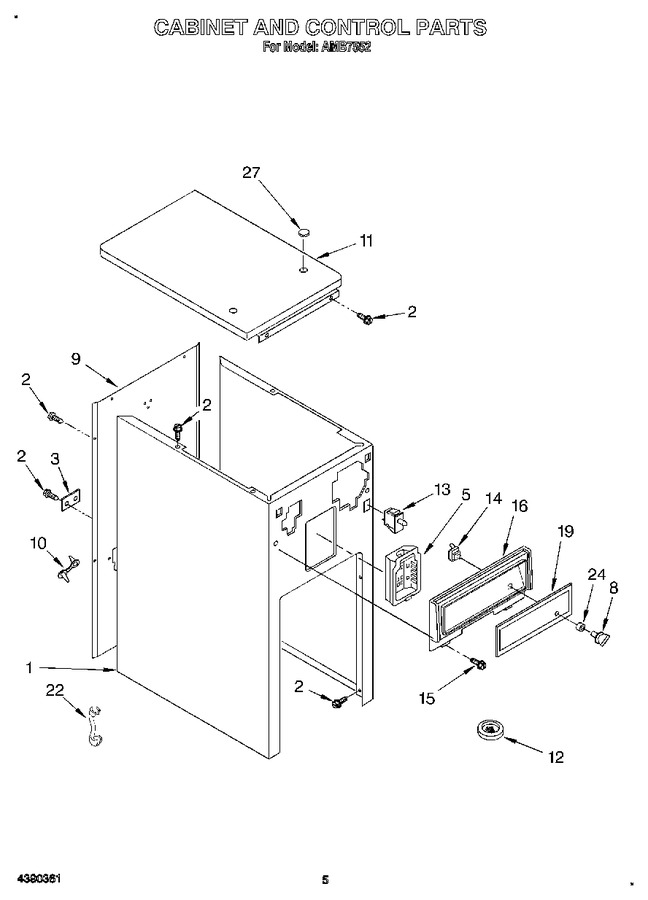

05 - Cabinet And Control
06 - Accessory
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9870913 | Cabinet (Replaces: 9870913) |
|
$ 284.13 | |||||
| 2 | WP489069 | Screw, 8 X 1/2ab (Replaces: 776076) |
|
Immediately | $ 7.86 | ||||
| 3 | 608336 | Plate, Power Cord |
|
- | |||||
| 5 | 777471 | Holder, Deodorant Storage |
|
$ 7.26 | |||||
| 8 | WP4154444 | Knob, Switch (Replaces: 9870115) |
|
$ 32.41 | |||||
| 9 | 9870863 | Panel, Back |
|
- | |||||
| 10 | W11705832 | Clamp, Wire (Replaces: 777035) |
|
- | |||||
| 11 | WP9870865 | Top, Cabinet (Replaces: 9870865) |
|
$ 318.69 | |||||
| 12 | 777635 | Deodorizer, Solid Stick-ups (2-pack) |
|
- | |||||
| 13 | WP4387911 | Switch, Drawer Tilt (Replaces: 4152058) |
|
Immediately | $ 39.66 | ||||
| 14 | 675382 | Switch, Rotary (Replaces: 608824) |
|
$ 246.48 | |||||
| 15 | 776559 | Screw, 6-20 X 3/8ab |
|
- | |||||
| 16 | 9870416 | Escutcheon, Control |
|
- | |||||
| 19 | 9870540 | Insert, Decorative |
|
- | |||||
| 22 | 776519 | Bushing, Power Cord |
|
- | |||||
| 24 | WP777383 | Nut, Switch (Replaces: 777383) |
|
$ 11.60 | |||||
| 27 | 4151479 | Plug, Hole |
|
- |
