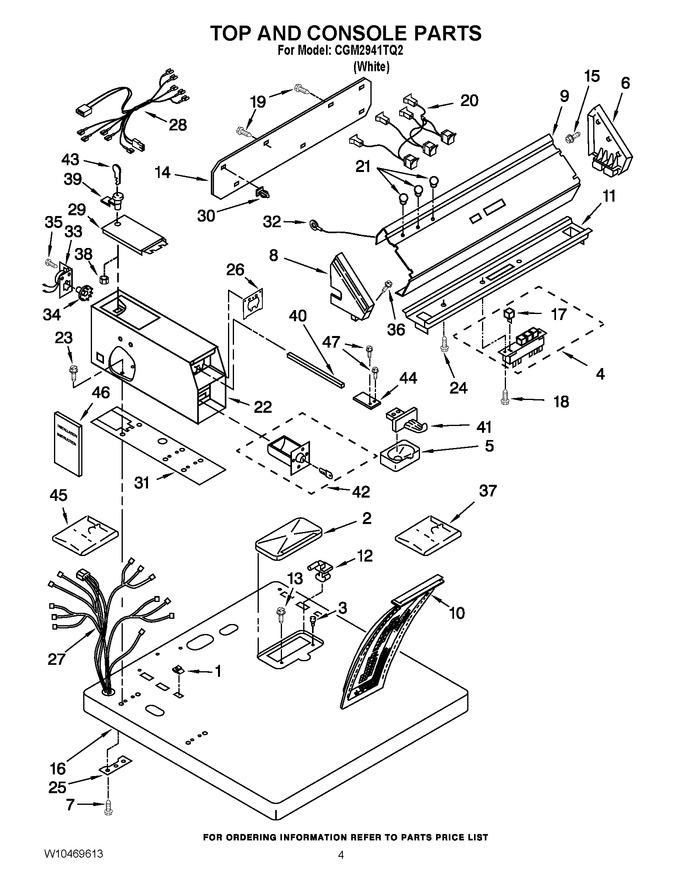

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP357213		Nut, Push-in   (Replaces: 357213)				$ 7.39
2	8283378		Cover, Lint Screen				$ 44.80
3	297535		Bumper, Lint Lid		Appelez-nous	-
4	WPW10330137		Switch, Pushbutton   (Replaces: W10330137)			Immediately	$ 339.56
5	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 74.20
6	3949737		Cap, End (r.h.)				$ 49.53
7	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
8	3402631		End Cap (l.h.)		Appelez-nous	-
9	W10127740		Panel, Control		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	3398113		Bracket, Control		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 3/8   (Replaces: 688983)			Immediately	$ 14.06
14	3387978		Panel, Rear Console		Appelez-nous	-
15	WPW10109200		Screw, 11-16 X 5/8   (Replaces: 97787)			Immediately	$ 8.00
16	8527847		Top		Appelez-nous	-
17	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 339.56
18	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 10.88
19	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
20	3401177		Light, Indicator Assembly		Appelez-nous	-
21	WP3348109		Lens, Amber   (Replaces: 3348109)			Immediately	$ 12.51
22	3978748		Case, Meter		Appelez-nous	-
23	W11715721		Bolt, 5/16-24 X 1   (Replaces: 3349065)				$ 7.12
24	WP3390631		Screw, 10-16 X 1/32   (Replaces: 339554)				$ 7.82
25	3347825		Plate-mounting		Appelez-nous	-
26	279950		Adapter Plate Chute Assembly (includes Illus. 5)   (Replaces: 3954761)			Immediately	$ 28.89
27	8529862		Harness, Wiring		Appelez-nous	-
28	3401126		Harness, Timer		Appelez-nous	-
29	W11283272		Door, Service   (Replaces: 3351136)				$ 105.88
30	689559		Nut, Push In		Appelez-nous	-
31	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 31.10
32	690853		Wire, Ground		Appelez-nous	-
33	W11451464		Timer (includes 4-pin Cam)   (Replaces: W10045440)			Immediately	$ 307.82
34	WP3387974		Timing Cam (3-pin (60 Min))   (Replaces: 3387974)				$ 8.32
34	51-161-6		Timing Cam (6-pin (30 Min))   (Replaces: 343777)				$ 34.52
35	339805		Screw, 10-32 X 3/16				$ 13.39
36	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
37	WP3406965		Kit, Vertical 8-coin (includes Illus. 39-41-42 44-45-46 & 47)   (Replaces: 3954807)			Immediately	$ 398.51
38	WP90406		Nut, Cage   (Replaces: 90406)				$ 8.14
39	W11315637		Security Lock/key & Cam Assembly   (Replaces: 8316526)			Immediately	$ 40.47
40	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 74.59
41	W11126319		Slide Mechanism (vertical 8-coin)   (Replaces: 8316520)			Immediately	$ 310.89
42	W11190039		Money Box W/lock (includes Key)   (Replaces: 8316525)			Immediately	$ 178.05
43	N/P		Key (service Door) (when Ordering Specify Vendor And Key Number)		Appelez-nous	-
44	3390424		Extension   (Replaces: 8316523)			Immediately	$ 68.25
45	8316524		Kit, Decal		Appelez-nous	-
46	8316532		Installation Instructions Coin Kit		Appelez-nous	-
47	3400086		Screw, 10-32 X 3/8				$ 12.77
NI	W11312584		(dollar Vend) Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 31.40
NI	8316265		(dollar Vend) Inserts (not Shown) (25¢)		Appelez-nous	-
