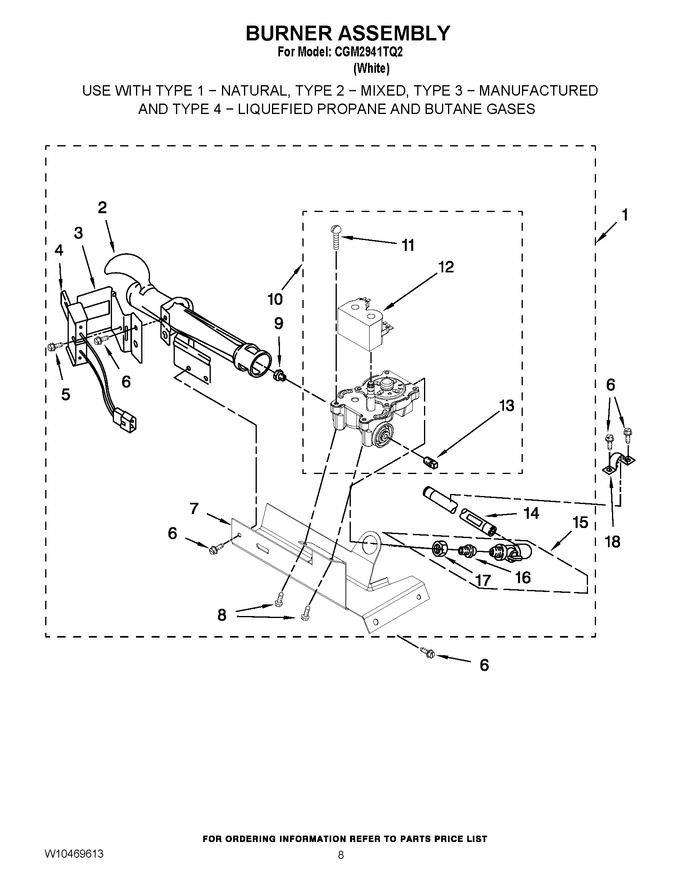

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10400396		Burner Assembly 60 Hz. (type 1, 2 & 3) (copreci)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 179.88
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 25.92
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.50
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
7	693986		Base, Burner		Appelez-nous	-
8	WP693995		Screw, 10-16 X 1/2   (Replaces: 3387057)			Immediately	$ 7.19
9	WP234868		Orifice, Burner (type 2)   (Replaces: 234868)				$ 34.85
9	234870		Orifice, Burner (type 1)				$ 123.13
10	279923		Valve, Gas 60 Hz. (complete)   (Replaces: W10304604)			Immediately	$ 286.03
11	326049536		Screw, Coil		Appelez-nous	-
12	WPW10328463		Coil, 60 Hz.   (Replaces: W10328463)			Immediately	$ 79.02
13	W10295523		Plug, Pipe		Appelez-nous	-
14	W10110396		Pipe, Gas Supply		Appelez-nous	-
15	661580		Valve, Gas				$ 240.04
16	3393767		Pipe, Tail				$ 137.74
17	233076		Nut, Compression				$ 43.19
18	341029		Clamp, Pipe		Appelez-nous	-
NI	49572A		Conversion Kit (type 1 And 2) To Type (4) L.p.g.   (Replaces: 694572)			Immediately	$ 36.19
