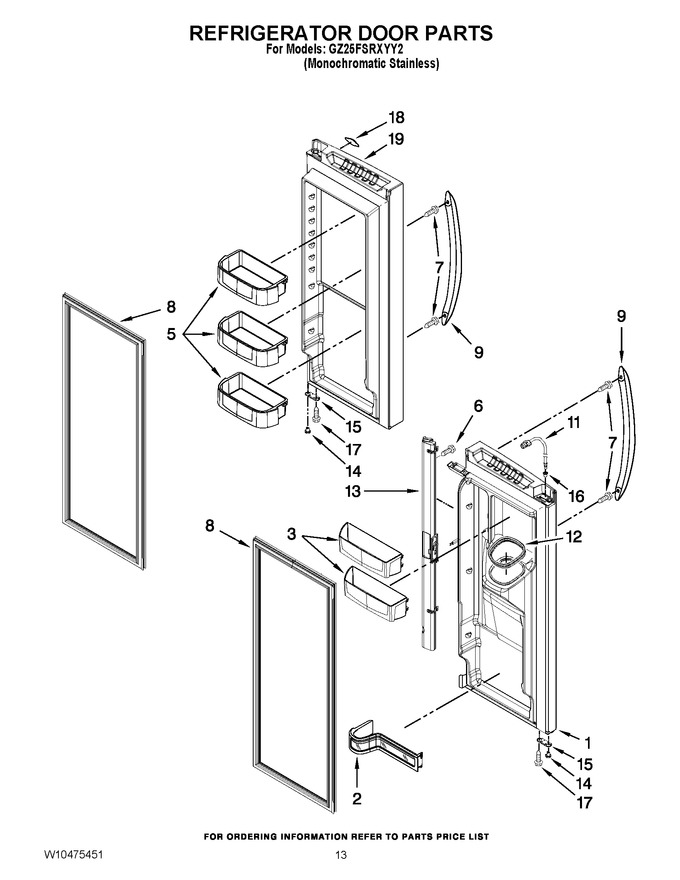

07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107318S		Door, Left (stainless)		Appelez-nous	-
2	WPW10323808		Bucket-mini-lh   (Replaces: W10323808)			Immediately	$ 81.50
3	WPW10212139		Bucket, Small(2)   (Replaces: W10212139)			Immediately	$ 78.54
5	WPW10224961		Bucket, Med.(3)   (Replaces: W10224961)			Immediately	$ 95.08
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
7	WPW10288153		Screw, Handle   (Replaces: W10288153)			Immediately	$ 9.65
8	W10830274		Gasket, Door (apollo Grey)   (Replaces: W10294127)			Immediately	$ 205.74
9	W11351147		Door Handle (stainless)   (Replaces: W10223019)				$ 198.22
11	W10296451		Waterline, Door				$ 53.54
12	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 32.76
13	WPW10311757		Mullion, Door (apollo Grey)   (Replaces: W10311757)				$ 141.14
14	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
15	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
16	12996601		Clip, Bushing Wire (left Door)				$ 10.05
17	WP98165		Screw   (Replaces: 12990521)				$ 8.57
18	WPW10393264		Nameplate (apollo Grey)   (Replaces: W10393264)				$ 67.74
19	13107319SQ		Door, Right (stainless)   (Replaces: 13107319S)				$ 1,094.27
