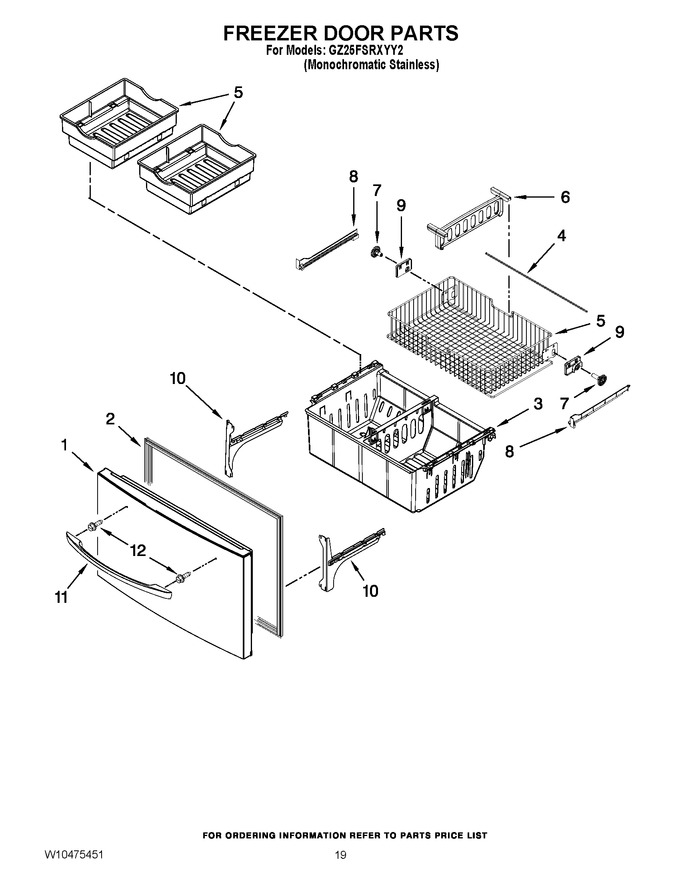

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111SQ		Freezer Door (stainless)   (Replaces: 13107111S)				$ 1,104.61
2	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 323.60
3	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
4	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38
5	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
6	W10146439		Divider, Upper				$ 32.66
7	WPW10474716		Gear (right)   (Replaces: W10158749)			Immediately	$ 32.42
7	WPW10474715		Gear (left)   (Replaces: W10146446)			Immediately	$ 32.76
8	W11489994		Rack, Side (right)   (Replaces: W10284695)				$ 23.46
8	W11489993		Rack, Side (left)   (Replaces: W10284694)				$ 23.46
9	W10348260		Mount, Gear (right)				$ 89.90
9	W10348259		Mount, Gear (left)				$ 89.87
10	WPW10330994		Bracket, Door Slide (left)   (Replaces: W10330994)			Immediately	$ 169.02
10	WPW10330995		Bracket, Door Slide (right)   (Replaces: W10330995)			Immediately	$ 340.61
11	W10223025		Handle-freezer (stainless)		Appelez-nous	-
12	WPW10288153		Screw, Handle   (Replaces: W10288153)			Immediately	$ 9.65
