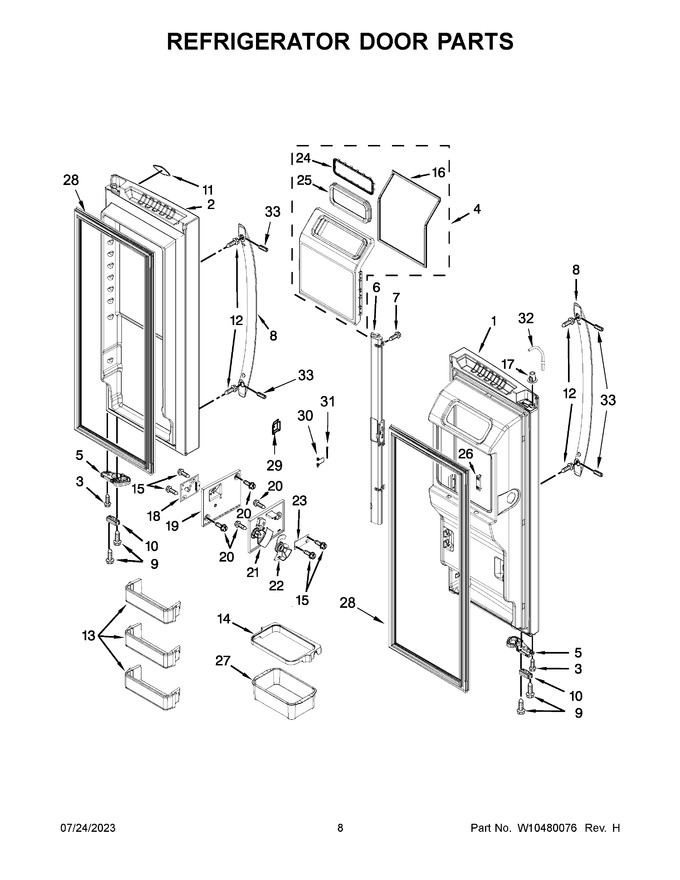

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10341416 | Door, Left (stainless) (Replaces: W10341416) |
|
$ 1,692.29 | |||||
| 2 | LW10341284 | Door, Right (stainless) (Replaces: W10341284) |
|
$ 1,223.19 | |||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 12.94 | |||||
| 4 | WPW10549590 | Door, Ice (Replaces: W10549590) |
|
$ 369.14 | |||||
| 5 | W10857643 | Latch, Door (left Hand) (Replaces: W10355634) |
|
$ 87.76 | |||||
| 6 | W10806457 | Mullion, Door (grey) (Replaces: W10654762) |
|
Immediately | $ 283.65 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | WPW10557401 | Handle, Door (stainless) (Replaces: W10557401) |
|
$ 318.30 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 11 | WPW10427988 | Nameplate (grey) (Replaces: W10427988) |
|
$ 75.04 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | W10468069 | Trivet, 2 Liter |
|
$ 57.04 | |||||
| 14 | WPW10447153 | Frame, Bin (Replaces: W10447153) |
|
$ 249.88 | |||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 69.41 | |||||
| 17 | W10562834 | Clip, Tube (Replaces: W10245516) |
|
$ 15.66 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 44.50 | |||||
| 20 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 21 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 11.15 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10518659) |
|
Immediately | $ 222.54 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 32.32 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 48.97 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 23.16 | ||||
| 27 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 83.43 | ||||
| 28 | W10407212 | Gasket, Door (grey) (Replaces: W10407146) |
|
Immediately | $ 254.40 | ||||
| 29 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 79.65 | |||||
| 30 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 31 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 32 | W10515780 | Tube, Water |
|
$ 121.73 | |||||
| 33 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 5A | WPW10372267 | Latch, Door (right Hand) (Replaces: W10372267) |
|
$ 13.98 |
