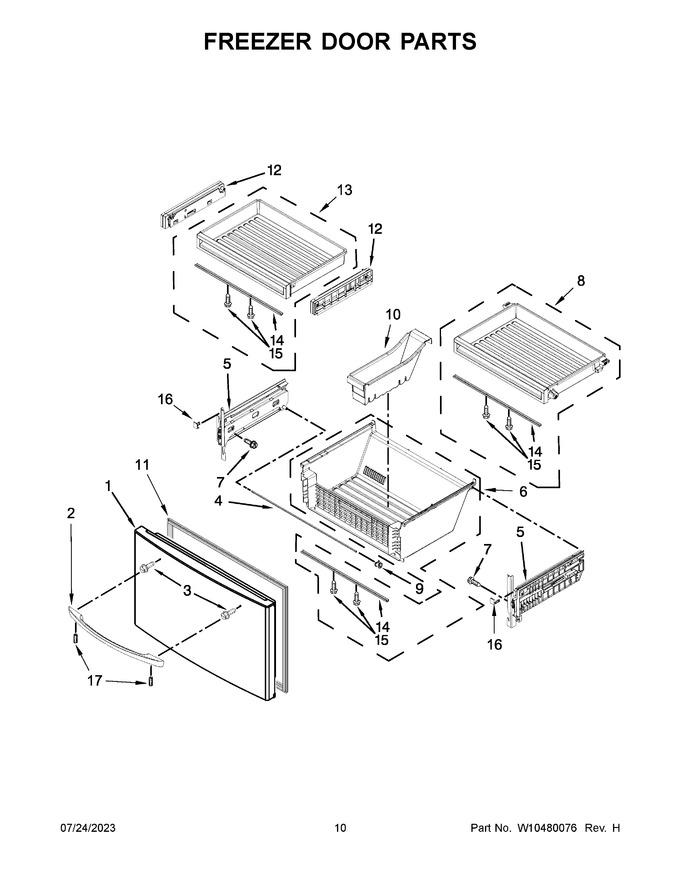

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10341279		Door, Freezer (stainless)		Appelez-nous	-
2	WPW10314522K		Handle, Door (brushed Aluminum)   (Replaces: W10557406)				$ 280.70
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 98.10
5	W11668671		Assembly, Bracket (left Hand)   (Replaces: W10638293)			Immediately	$ 529.03
6	W10594047		Assembly, Lower Pan				$ 307.51
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W10493159		Assembly, Center Pan		Appelez-nous	-
9	W10852685		Clip, Shaft   (Replaces: W10248509)				$ 11.39
10	W10507444		Divider, Lower				$ 62.14
11	W10407216		Gasket, Door (grey)   (Replaces: W10248749)			Immediately	$ 284.17
12	W10850332		Assembly, Adapter (left Hand)   (Replaces: W10619219)				$ 141.59
13	W10493168		Assembly, Upper Pan				$ 60.53
14	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
15	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
16	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 83.65
17	WP3400203		Screw, Set   (Replaces: W10287054)			Immediately	$ 5.04
12A	W10858092		Assembly, Adapter (right Hand)   (Replaces: W10619218)				$ 154.11
16A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 86.71
5A	W11668671		Assembly, Bracket (right Hand)   (Replaces: W10638294)			Immediately	$ 529.03
