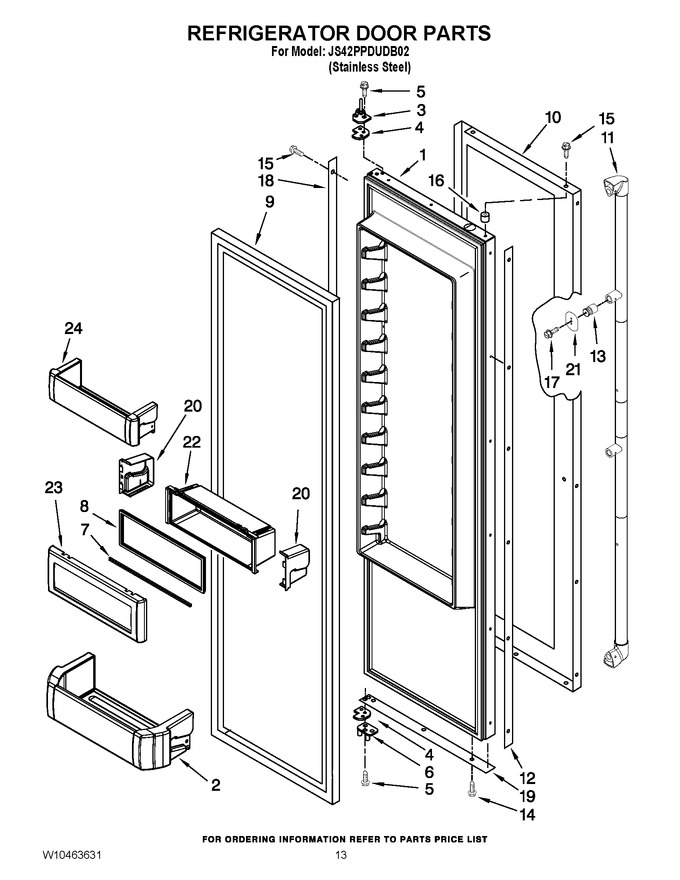

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193490 | Door Assy, Rc (includes Item No.9) |
|
- | |||||
| 2 | W10323747 | Bin, Door-gallon |
|
$ 145.36 | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2266854) |
|
$ 312.50 | |||||
| 4 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 91.01 | ||||
| 7 | W11448696 | Rail, Lid (Replaces: 2222796) |
|
$ 153.99 | |||||
| 8 | W11448696 | Gaasket, Utility Bin (Replaces: 2222982) |
|
$ 153.99 | |||||
| 9 | WP2266902 | Door Gasket, Magnetic (Replaces: 2222811) |
|
$ 330.30 | |||||
| 10 | W10144969 | Skin, Door (stainless Steel) |
|
- | |||||
| 11 | 12859108 | Handle, Door (stainless Steel) |
|
$ 284.63 | |||||
| 12 | 2309060 | Spacer, Door-skin (handle Side) (for Stainless Steel Model) |
|
- | |||||
| 13 | WPW10153450 | Stud, Mounting (Replaces: W10153450) |
|
$ 87.26 | |||||
| 14 | W10759522 | Screw (Replaces: 488568) |
|
$ 8.24 | |||||
| 15 | WP8281250 | Screw, 8-15 X .500 (stainless Steel) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 16 | 2005433 | Spacer, Door-skin (top) |
|
$ 23.33 | |||||
| 17 | WP308544 | Screw, Handle (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 18 | W10142296 | Spacer, Door-skin (hinge Side) |
|
- | |||||
| 19 | 2004934 | Spacer, Door-skin (bottom) |
|
- | |||||
| 20 | WPW10323173 | End Cap (left Side) (Replaces: W10323173) |
|
$ 8.60 | |||||
| 20 | WPW10323172 | End Cap (right Side) (Replaces: W10323172) |
|
$ 8.60 | |||||
| 21 | W10127710 | Plate, Door-handle |
|
Immediately | $ 25.94 | ||||
| 22 | W11448696 | Bin, Utility Center (Replaces: W10323036) |
|
$ 153.99 | |||||
| 23 | W11553221 | Door, Utility Bin (Replaces: 2257616) |
|
Immediately | $ 69.64 | ||||
| 24 | W10323599 | Bin, Door-shallow |
|
$ 146.61 |
