SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Dispenser Front Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts


14 - Icemaker Parts


15 - Motor And Ice Container Parts

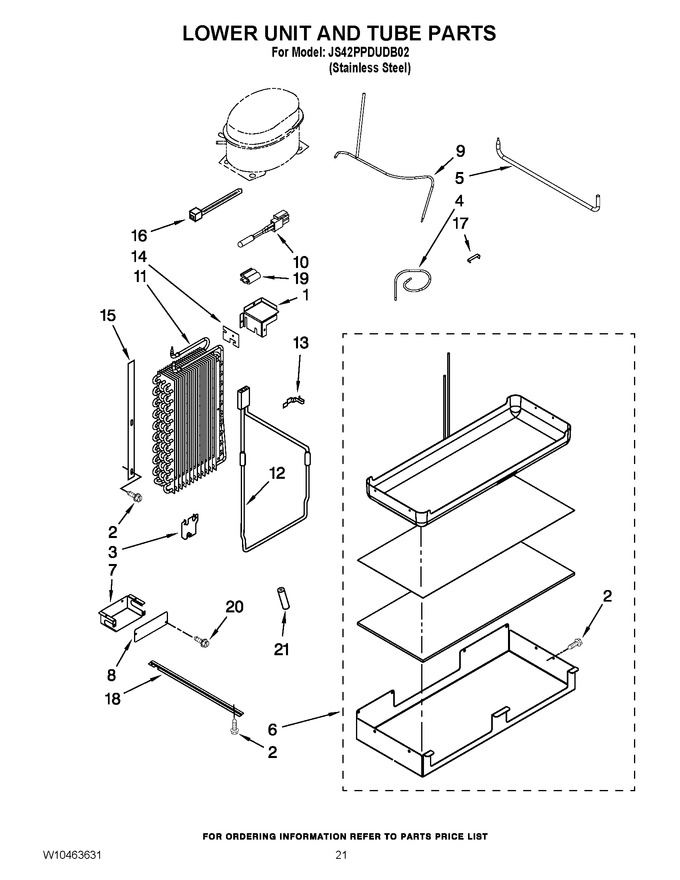

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly, Air Return		Appelez-nous	-
2	W11624204		Screw   (Replaces: 486194)				$ 14.72
3	W10157752		Bracket, Heater Mounting		Appelez-nous	-
4	W10306442		Suction Tube		Appelez-nous	-
5	W10388653		Tube, Connect (drier/restrictor)			Immediately	$ 40.48
6	W11623101		Drain Pan Assy.   (Replaces: W10281063)			Immediately	$ 394.02
7	W10151288		Cover, Wiring		Appelez-nous	-
8	W10153595		Cover, Box		Appelez-nous	-
9	W10412488		Tube, Discharge				$ 120.68
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
11	WPW10205101		Evaporator   (Replaces: W10205101)			Immediately	$ 324.43
12	W11812025		Heater, Defrost   (Replaces: W10140161)				$ 76.48
13	1113048		Clamp, Heater		Appelez-nous	-
14	W10139908		Cover Seal, Evaporator Tubes				$ 13.06
15	2220832		Gasket, Evaporator		Appelez-nous	-
16	4389107		Wire Tie		Appelez-nous	-
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	9791833		Clip		Appelez-nous	-
20	WP489069		Screw, 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
21	2215648		Dampener				$ 13.21
