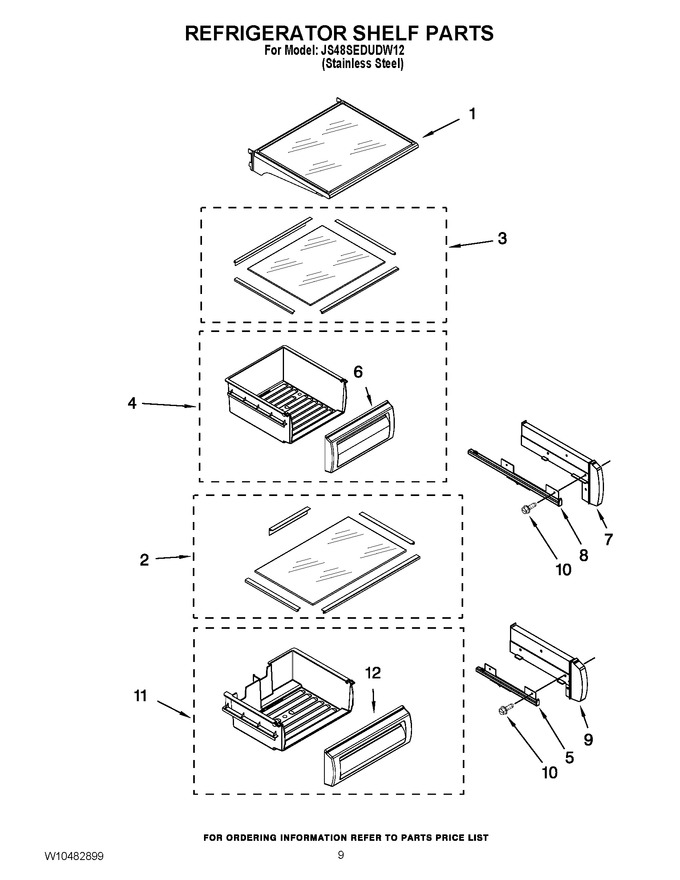

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222593		Shelf Assembly   (Replaces: W10141495)				$ 320.16
2	W10151216		Assembly, Meat Pan Cover				$ 92.42
3	W10151214		Assembly, Crisper Cover				$ 196.14
4	W10407625		Crisper Pan				$ 178.12
5	2302954		Slide, Meat Pan (lh)				$ 343.49
5	2302955		Slide, Meat Pan (rh)				$ 343.18
6	W10407625		Front, Crisper Pan   (Replaces: 2256249)				$ 178.12
7	2256222		Spacer, Crisper (rh)				$ 89.24
7	2256223		Spacer, Crisper (lh)				$ 84.49
8	2302957		Slide, Crisper (lh)				$ 228.33
8	2302956		Slide, Crisper (rh)				$ 298.73
9	2256244		Spacer, Meat Pan (rh)				$ 103.70
9	2256243		Spacer, Meat Pan (lh)				$ 83.04
10	W11830745		Screw (right Side- (8-18 X 1.375))   (Replaces: 8533929)		Appelez-nous	-
10	WP8533928		Screw (left Side- (8-18 X .750))   (Replaces: 8533928)			Immediately	$ 8.26
11	W10407628		Pan Assembly Meat				$ 170.93
12	WP2256367		Front, Meat Pan   (Replaces: 2256367)				$ 182.76
