01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

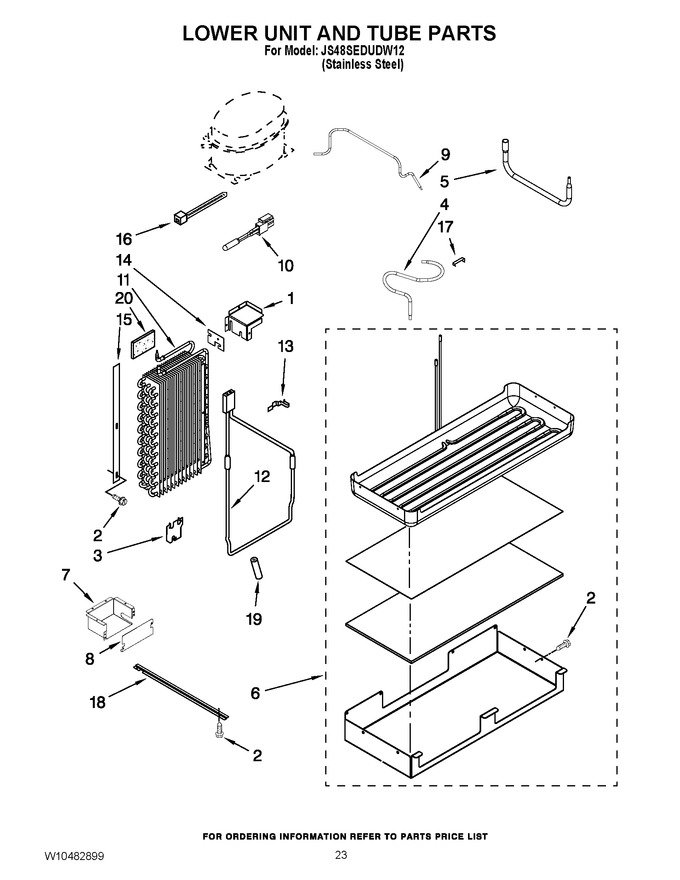

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly, Air Return		Appelez-nous	-
2	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
3	W10157752		Bracket		Appelez-nous	-
4	W10431124		Suction Tube Oil Trap				$ 32.73
5	W10388653		Tube, Connect (drier/restrictor)			Immediately	$ 40.48
6	W11623101		Drain Pan Assy.   (Replaces: W10281063)			Immediately	$ 394.02
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 81.52
8	W11756952		Cover, Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412485		Tube, Discharge				$ 135.81
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
11	WPW10427993		Evaporator   (Replaces: W10427993)			Immediately	$ 314.25
12	WPW10140162		Heater, Defrost   (Replaces: W10140162)			Immediately	$ 170.92
13	1113048		Clamp, Heater		Appelez-nous	-
14	W10139908		Cover Seal, Evaporator Tubes				$ 13.06
15	W10432308		Gasket, Evaporator		Appelez-nous	-
16	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	2215648		Dampener				$ 13.21
20	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 14.77
