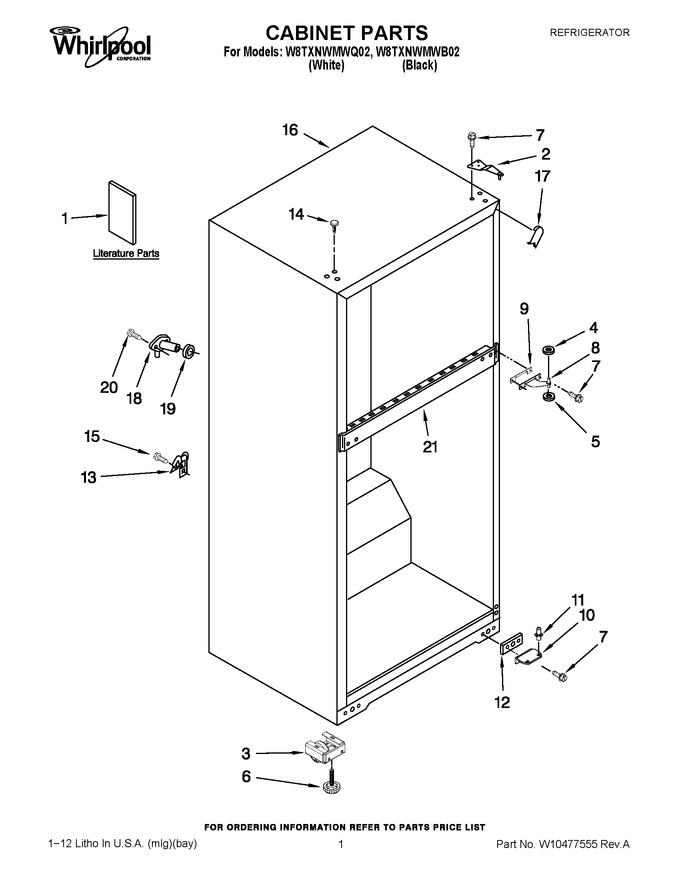

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10231807		Energy Guide		Appelez-nous	-
1	677969		Do-it-yourself Manual Ref./fzr.				$ 30.30
1	W10444227		Service & Wiring Sheet		Appelez-nous	-
1	2316016		Use & Care Guide		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
2	WP2261963		Hinge Assy, Top   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Roller Assy, Front (includes Item 6)   (Replaces: W10142530)			Immediately	$ 118.10
4	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
5	WP487576		Washer, Nylon   (Replaces: 487576)			Immediately	$ 9.88
6	WPW10133299		Leveler   (Replaces: W10133299)				$ 12.35
7	WP489497		Screw 12-24 X .700   (Replaces: 489497)			Immediately	$ 29.09
8	WP2166037		Hinge Assy, Center   (Replaces: 2166086)				$ 85.08
9	2166043		Hinge Shim, Center				$ 69.76
10	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 80.00
11	WP2325483		Hinge Pin, Bottom   (Replaces: 2325483)			Immediately	$ 7.55
12	WP2201567		Hinge Shim, Bottom   (Replaces: 2201567)			Immediately	$ 8.16
13	549193		Clamp, Cord				$ 14.06
14	WP2183998		Hole Plug (black)   (Replaces: 2183998)				$ 19.01
14	WP2151652		Hole Plug (white)   (Replaces: 2201012)				$ 22.87
15	WP489442		Screw 8-18 X .600   (Replaces: 489442)			Immediately	$ 11.49
16	N/P		Cabinet (not Serviced)		Appelez-nous	-
17	W11500943		Filler, Corner (black)   (Replaces: 2215384)				$ 7.98
17	W10859322		Filler, Corner (white)   (Replaces: 2166003)				$ 8.09
18	WP2196157		Fitting, Water Tube   (Replaces: 2174760)			Immediately	$ 12.59
19	WP1106508		Seal   (Replaces: 1106508)			Immediately	$ 10.43
20	WP488729		Screw 8-15 X 1/2   (Replaces: 2262176)			Immediately	$ 8.28
21	N/P		Rail, Center (not Serviced)		Appelez-nous	-
