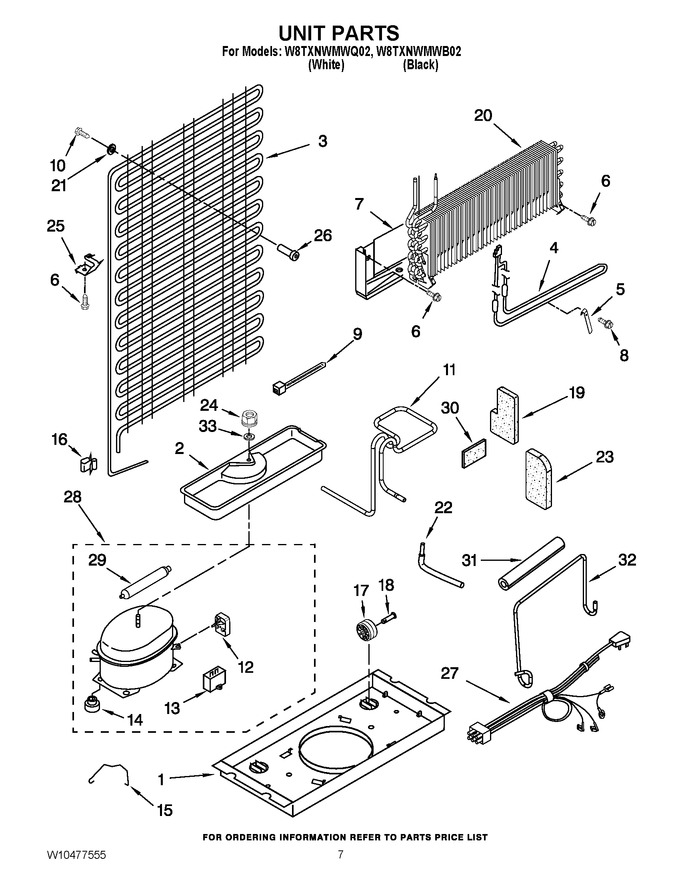

04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Support Plate, Compressor |
|
$ 32.07 | |||||
| 2 | W10174378 | Tray, Evaporator |
|
$ 156.50 | |||||
| 3 | WPW10219349 | Condenser (Replaces: W10219349) |
|
$ 290.70 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 20.12 | |||||
| 6 | WP489442 | Screw 8-18 X .600 (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | WP489478 | Screw 48-18 X 1/2 (Replaces: 489478) |
|
$ 8.18 | |||||
| 9 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 10 | 8533892 | Screw 8-18 X 3.00 |
|
- | |||||
| 11 | WPW10442467 | Tube, Discharge (incl. Pre Cooler) (Replaces: W10442467) |
|
$ 118.58 | |||||
| 12 | WPW10399283 | Start- Device Combination (start Relay And Overload) (Replaces: W10399283) |
|
$ 176.31 | |||||
| 13 | WP65889-4 | Capacitor (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 2264447) |
|
Immediately | $ 7.55 | ||||
| 15 | 2212996 | Strap Bale |
|
$ 12.72 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller, Rear (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy (Replaces: 2263920) |
|
Immediately | $ 333.22 | ||||
| 21 | 8526417 | Washer (Replaces: VS611) |
|
$ 14.64 | |||||
| 22 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 108.61 | |||||
| 23 | 2262192 | Evaporator, Wedge |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Spacer |
|
- | |||||
| 27 | W10151654 | Wire Assy. Unit (Replaces: W10244326) |
|
$ 308.35 | |||||
| 28 | W10822653 | Compressor (includes Items 12, 13, 14 & 29) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10399120) |
|
$ 390.64 | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 30 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 31 | 2264838 | Sleeve |
|
$ 92.28 | |||||
| 32 | W10442468 | Extension, Heat Tube |
|
- | |||||
| 33 | WP487802 | Washer-nylon (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. (r134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- |
