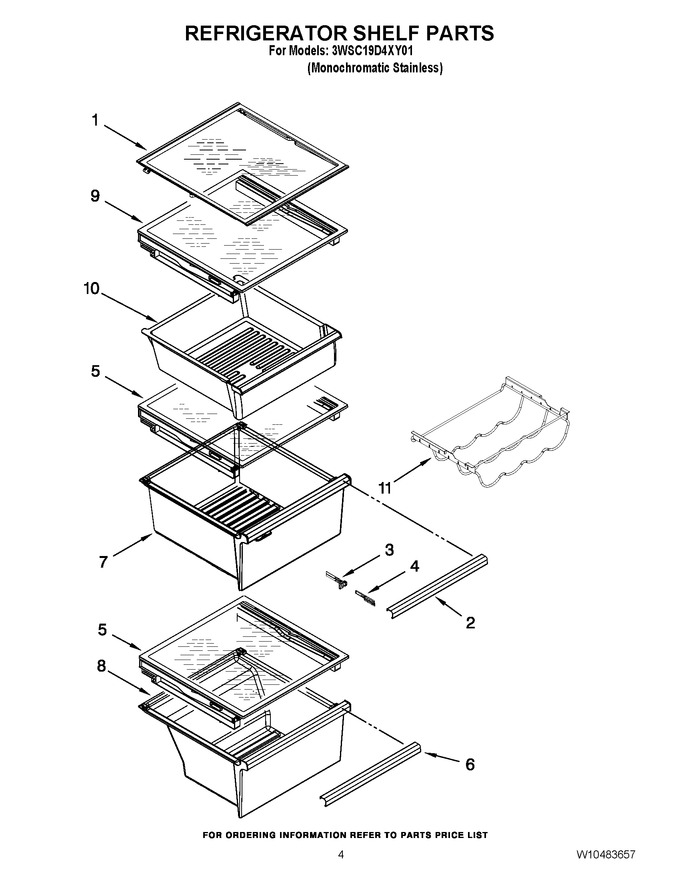

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10269156		Shelf Assy   (Replaces: W10269156)				$ 159.82
2	W10309635		Trim, Handle		Appelez-nous	-
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 30.50
4	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 30.50
5	W10290874		Cover, Assy		Appelez-nous	-
6	W10309636		Trim, Handle   (Replaces: W10281628)		Appelez-nous	-
7	WPW10296843		Crisper Pan (also Order 2, 3, & 4)   (Replaces: W10296843)				$ 236.30
8	W10296845		Meat Pan (also Order 6)		Appelez-nous	-
9	W10425589		Shelf, Snack Pan		Appelez-nous	-
10	W10387376		Snack Pan		Appelez-nous	-
11	W10257377		Wine Rack		Appelez-nous	-
