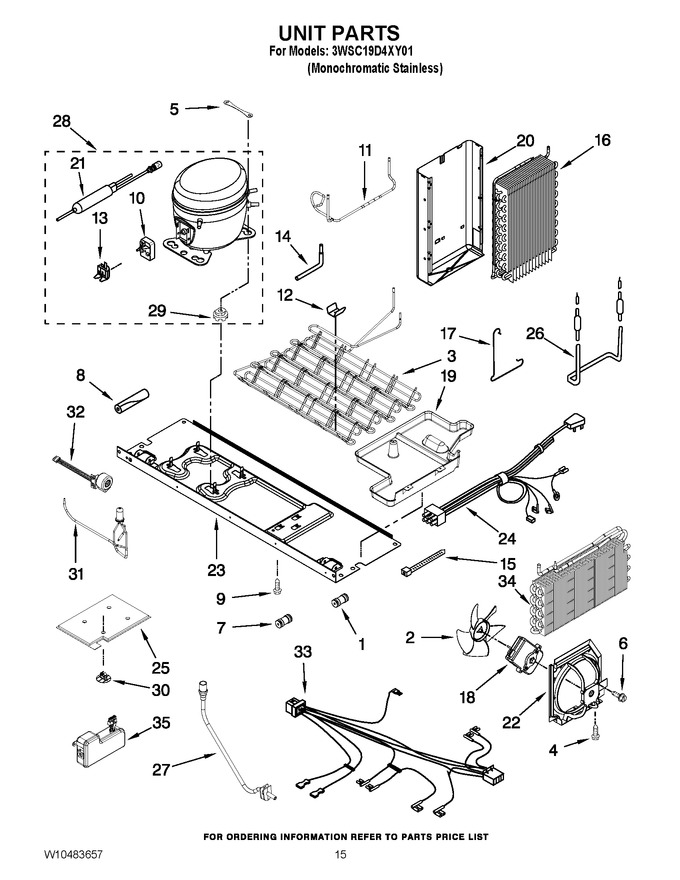

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10271543 | Connector, Elbow 5/16 (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 2 | W11458267 | Fan, Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11708426 | Condenser Assembly (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WP2300868 | Connector, 5/16 (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | W11544659 | Screw (Replaces: W10142294) |
|
$ 14.35 | |||||
| 10 | W10364559 | Start Device Relay (production) |
|
- | |||||
| 11 | WPW10223328 | Tube Suction (Replaces: W10223328) |
|
$ 92.85 | |||||
| 12 | W10683556 | Clip, Condenser(2) (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W10457584 | Overload (production) |
|
- | |||||
| 14 | 2325479 | Process Tube |
|
- | |||||
| 15 | WP2205813 | Strap (Replaces: 2205813) |
|
$ 8.11 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 17 | 2161324 | Clamp |
|
- | |||||
| 18 | W10837641 | Fan, Motor (Replaces: W10293680) |
|
- | |||||
| 19 | WPW10369752 | Tray, Evaporator (Replaces: W10369752) |
|
$ 152.62 | |||||
| 20 | W10348669 | Heat Shield |
|
- | |||||
| 21 | WPW10143759 | Drier (production) (Replaces: W10286069) |
|
Immediately | $ 30.78 | ||||
| 22 | WPW10251467 | Air Baffle (Replaces: W10251467) |
|
$ 84.80 | |||||
| 23 | W10277704 | Support Plate, Compressor |
|
$ 169.00 | |||||
| 24 | W10253252 | Power Cord |
|
- | |||||
| 25 | W10366750 | Unit Cover, Bottom |
|
- | |||||
| 26 | W10837285 | Heater, Defrost (Replaces: W10251473) |
|
- | |||||
| 27 | W11409190 | Tube, Drain (Replaces: W10223368) |
|
Immediately | $ 65.34 | ||||
| 28 | W10475481 | Compressor (includes Items 10, 13, 21, & 29) (also Order 876765 Tube Kit) (Replaces: W10374153) |
|
- | |||||
| 29 | WPW10169124 | Grommet (4) (production) (Replaces: 10835903) |
|
$ 7.55 | |||||
| 30 | W10296661 | Clip |
|
$ 17.78 | |||||
| 31 | W11590197 | Assy, Valve Body (Replaces: W10331270) |
|
Immediately | $ 114.11 | ||||
| 32 | WPW10364560 | Valve Coil, 3 Way (Replaces: W10364560) |
|
$ 225.88 | |||||
| 33 | W10253322 | Harness, Wiring Water Valve/diode |
|
- | |||||
| 34 | WPW10643261 | Evaporator Dual - Rc (Replaces: W10156654) |
|
Immediately | $ 343.44 | ||||
| 35 | W10292716 | Led Power Supply |
|
$ 203.72 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (5.2oz. (r-134)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
