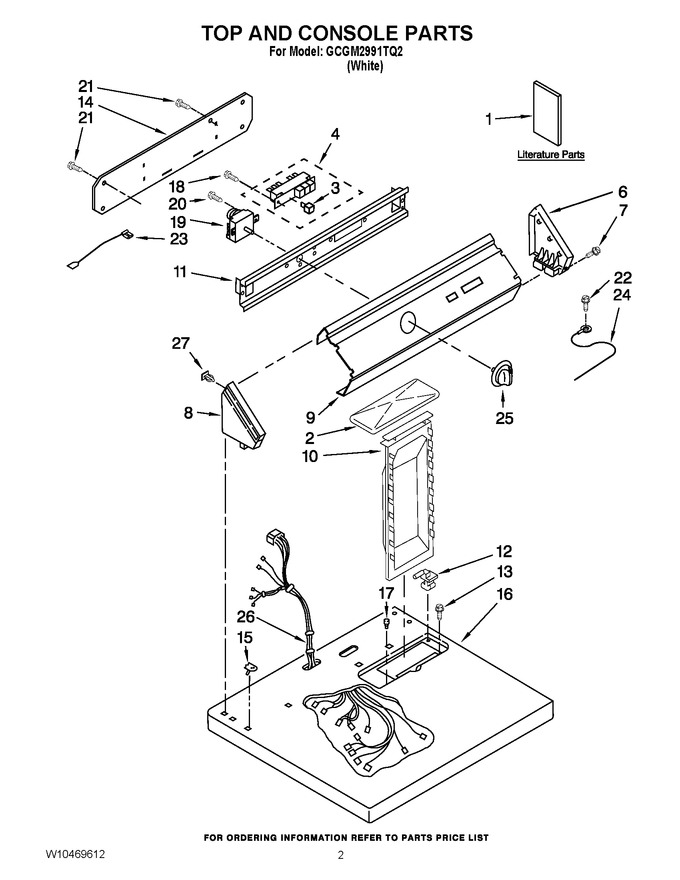

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8577213 | Instructions, Installation |
|
- | |||||
| 1 | W10469612 | Repair Parts List |
|
- | |||||
| 1 | 8527907 | Use & Care Guide |
|
- | |||||
| 1 | 8576818 | Wiring Diagram |
|
- | |||||
| 2 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 3 | WPW10330137 | Pushbutton (Replaces: 8316433) |
|
Immediately | $ 339.56 | ||||
| 4 | WPW10330137 | Switch, Pushbutton (Replaces: W10330137) |
|
Immediately | $ 339.56 | ||||
| 6 | 3949737 | End Cap (r.h.) |
|
$ 49.53 | |||||
| 7 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 8 | 3949734 | End Cap (l.h.) |
|
- | |||||
| 9 | 8527826 | Control Panel |
|
- | |||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8527828 | Bracket, Control |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 8066156 | Panel, Rear |
|
- | |||||
| 15 | WP357213 | Nut, Push-in (Replaces: 357213) |
|
$ 7.76 | |||||
| 16 | 8316630 | Top |
|
$ 214.66 | |||||
| 17 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 18 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 303921) |
|
$ 11.40 | |||||
| 19 | 3979596 | Timer |
|
$ 149.66 | |||||
| 20 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 21 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 22 | WP3390631 | Screw, 10-16 X 5/16 (Replaces: 339554) |
|
$ 8.25 | |||||
| 23 | 3393811 | Wire, Jumper (violet) |
|
- | |||||
| 23 | 3393812 | Wire, Jumper (blue) |
|
- | |||||
| 24 | W10110977 | Wire, Ground |
|
- | |||||
| 25 | 8529317 | Knob, Timer |
|
$ 45.01 | |||||
| 26 | 8299876 | Harness, Wiring (complete) |
|
- | |||||
| 27 | 689559 | Nut, Push In |
|
- |
