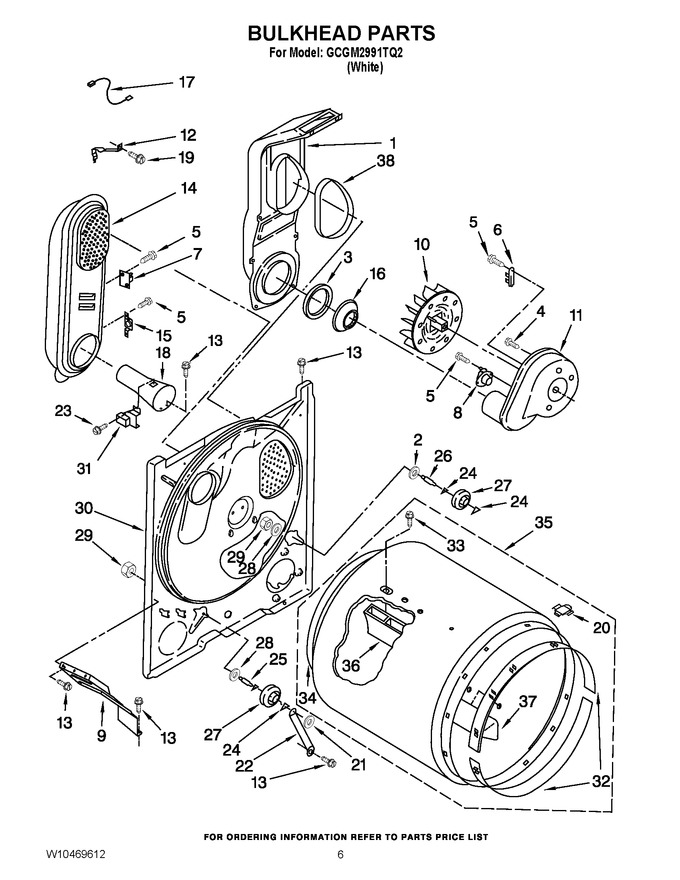

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 183.76 | |||||
| 2 | WP3388703 | Washer, Support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 3 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 4 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | W11050897 | Kit, Thermal Cut-off (includes Illus. 15) (Replaces: 280010) |
|
Immediately | $ 15.30 | ||||
| 8 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 9 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 58.88 | |||||
| 10 | WP694089 | Wheel, Blower (includes Illus. 19) (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 186.85 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 15.05 | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 279980 | Box, Heater (Replaces: 8530285) |
|
$ 331.29 | |||||
| 15 | W11050897 | Thermostat, High Limit 205°f (96°c) (Replaces: W10423382) |
|
Immediately | $ 15.30 | ||||
| 16 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 | |||||
| 17 | WP3401707 | Wire, Jumper (Replaces: 3401707) |
|
$ 86.59 | |||||
| 18 | WP8066049 | Funnel, Burner (Replaces: 8066049) |
|
$ 156.50 | |||||
| 19 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 20 | 8066086 | Drum Hole Plug |
|
$ 11.29 | |||||
| 21 | WP90296 | Clip (Replaces: 90296) |
|
$ 8.24 | |||||
| 22 | W11684613 | Bracket, Support Shaft (Replaces: 3976434) |
|
$ 21.99 | |||||
| 23 | WP3390631 | Screw, Sensor To Funnel (Replaces: 339554) |
|
$ 8.25 | |||||
| 24 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 25 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 26 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 27 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 28 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.55 | |||||
| 29 | W11229607 | Nut, 3/8-16 (Replaces: W10298789) |
|
Immediately | $ 8.64 | ||||
| 30 | W11178668 | Bulkhead (Replaces: 3403410) |
|
$ 299.30 | |||||
| 31 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 32 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 33 | W10853898 | Screw, 8-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 34 | W10612022 | Seal, Rear (Replaces: W10352407) |
|
Immediately | $ 57.15 | ||||
| 35 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 375.53 | |||||
| 36 | WP692490 | Baffle, Drum (wide) (Replaces: 692490) |
|
$ 167.23 | |||||
| 37 | WP3403636 | Baffle, Drum (narrow) (Replaces: 3403636) |
|
$ 145.59 | |||||
| 38 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 |
