Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Breaker, Trim (not Serviced) Appelez-nous -
2 W10207207 Cabinet Trim, Right Side Special Order $ 214.60

3 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

4 W10188505 Cabinet, Trim (bottom) Special Order $ 124.72

5 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

6 W10138451 Cabinet, Trim Top Special Order $ 221.85

7 2316857 Cam, Mullion (top) Special Order $ 15.67

7 2316858 Cam, Mullion (bottom) Appelez-nous -
9 2005925 Seal-trim, Side Special Order $ 83.72

10 W10207244 Cabinet Trim, Left Side Special Order $ 213.58

11 WP489464 Screw 8-18 X 1/2   (Replaces: W10001250) In-Stock Immediately $ 8.38

12 2309231 Contact, Mullion (bottom) Special Order $ 54.31

12 2309230 Contact, Mullion (top) Special Order $ 16.17

13 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

14 2316899 Cover, Screw (square) Appelez-nous -
15 2317078 Cover, Screw (round) Appelez-nous -
16 WPW10121451 Nutsert   (Replaces: W10121451) In-Stock Immediately $ 8.03


    View Diagram in Separate Window     Print Icon   Print Part List

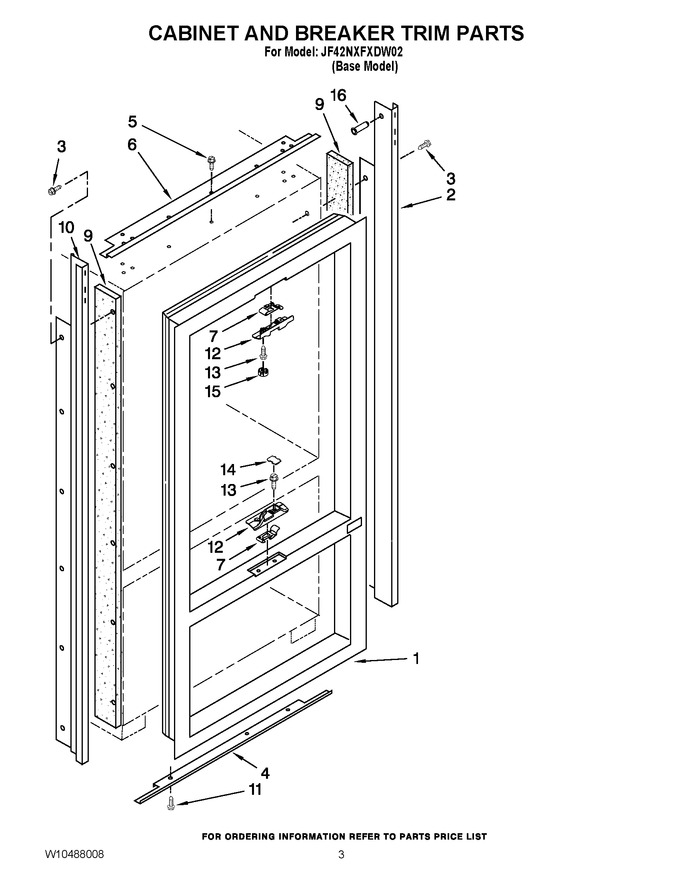

Diagram for JF42NXFXDW02
