SELECT A DIAGRAM
New Model Search:

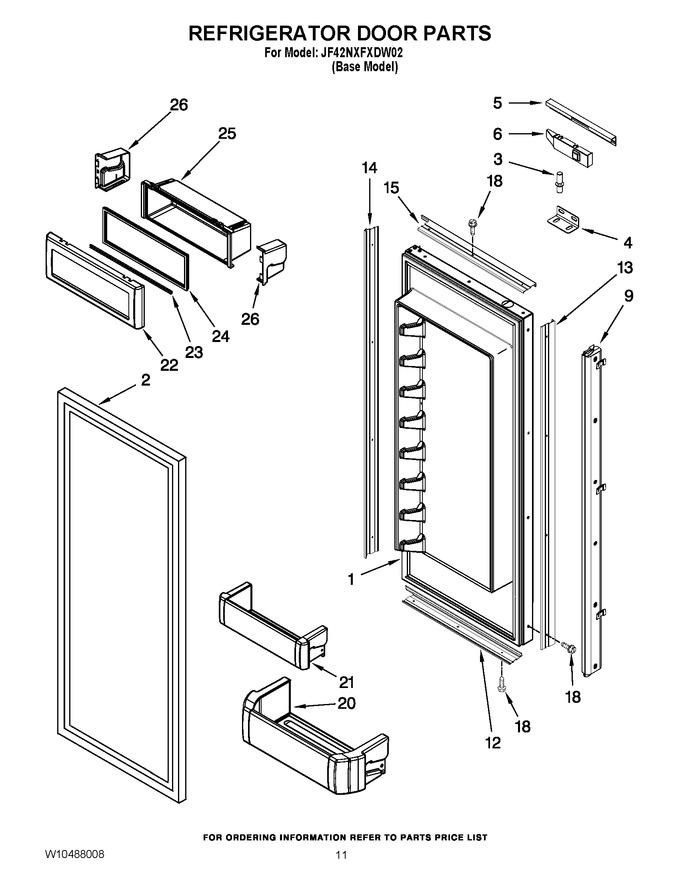

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138419 | Door, Refrigerator (includes Item 2) (rh) |
|
- | |||||
| 1 | W10138417 | Door, Refrigerator (includes Item 2) (lh) |
|
- | |||||
| 2 | 8201809 | Gasket, Door (Replaces: 2268265) |
|
Immediately | $ 246.99 | ||||
| 3 | W10234194 | Pin-door, Top |
|
$ 17.66 | |||||
| 4 | W10199955 | Bracket, Mounting |
|
$ 93.88 | |||||
| 5 | W10202511 | Cover-door, Top (lh) |
|
$ 114.74 | |||||
| 5 | W10202510 | Cover-door, Top (rh) |
|
$ 110.02 | |||||
| 6 | W10197766 | Insert-door, Arm (bottom) |
|
$ 17.26 | |||||
| 6 | W10197748 | Insert-door, Arm (top) |
|
$ 18.83 | |||||
| 9 | W10188592 | Door, Mullion |
|
$ 238.65 | |||||
| 12 | WPW10202474 | Trim-door, Bottom (lh) (Replaces: W10202474) |
|
$ 111.94 | |||||
| 12 | W10202473 | Trim-door, Bottom (rh) |
|
- | |||||
| 13 | W10202478 | Trim-door, Side (handle Side) (rh) |
|
$ 115.91 | |||||
| 13 | WPW10202480 | Trim-door, Side (handle Side) (lh) (Replaces: W10202480) |
|
$ 177.63 | |||||
| 14 | W10202476 | Trim-door, Side (hinge Side) |
|
- | |||||
| 15 | W10202471 | Trim-door, Top (rh) |
|
$ 166.67 | |||||
| 15 | WPW10202472 | Trim-door, Top (lh) (Replaces: W10202472) |
|
$ 209.13 | |||||
| 18 | W10825422 | Screw, 8-15 X 1/2 (Replaces: 8281251) |
|
$ 11.36 | |||||
| 20 | W10323746 | Shelf, Door (gallon) |
|
$ 108.24 | |||||
| 21 | W10323598 | Shelf, Door |
|
$ 104.79 | |||||
| 22 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 75.81 | |||||
| 23 | 2222795 | Rail, Lid |
|
$ 84.11 | |||||
| 24 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 214.40 | |||||
| 25 | WPW10323035 | Bin, Utility (Replaces: W10323035) |
|
$ 84.93 | |||||
| 26 | WPW10323172 | End Cap, Utility Bin (rh) (Replaces: W10323172) |
|
$ 8.60 | |||||
| 26 | WPW10323173 | End Cap, Utility Bin (lh) (Replaces: W10323173) |
|
$ 8.60 |
