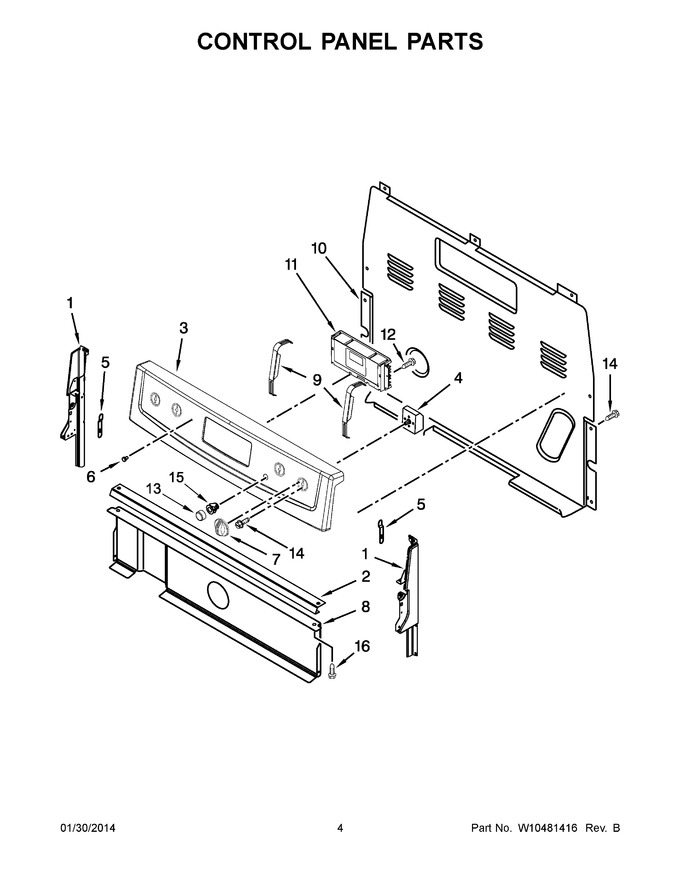

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 40.43
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 57.93
1	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 146.50
1	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 40.44
2	W10525121		Bracket, Console Mounting				$ 94.14
3	W10315966		Panel, Control (stainless)		Appelez-nous	-
3	W10315964		Panel, Control (white)		Appelez-nous	-
3	W10315965		Panel, Control (black)		Appelez-nous	-
4	WPW10434452		Switch, Infinite Dual (left Front & Right Front)   (Replaces: W10434452)			Immediately	$ 140.84
4	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
5	3196200		Clip, Spring				$ 9.95
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
7	W11193834		Knob, Infinite (black)   (Replaces: W10211372)				$ 84.74
7	WPW10211371		Knob, Infinite (white)   (Replaces: W10211371)			Immediately	$ 20.22
8	W10134247		Shield, Heat			Immediately	$ 341.73
9	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 80.77
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 208.61
11	WPW10558202		Control, Range (white)   (Replaces: W10558201)				$ 277.62
11	WPW10558202		Control, Range (black)   (Replaces: W10558202)				$ 277.62
12	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
13	9758491		Button, Keep Warm (black)				$ 18.80
13	9757492		Button, Keep Warm (white)				$ 91.44
14	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.19
15	W10217760		Bezel, Keep Warm (white)				$ 24.68
15	W10217758		Bezel, Keep Warm (black)				$ 27.29
16	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
