SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts

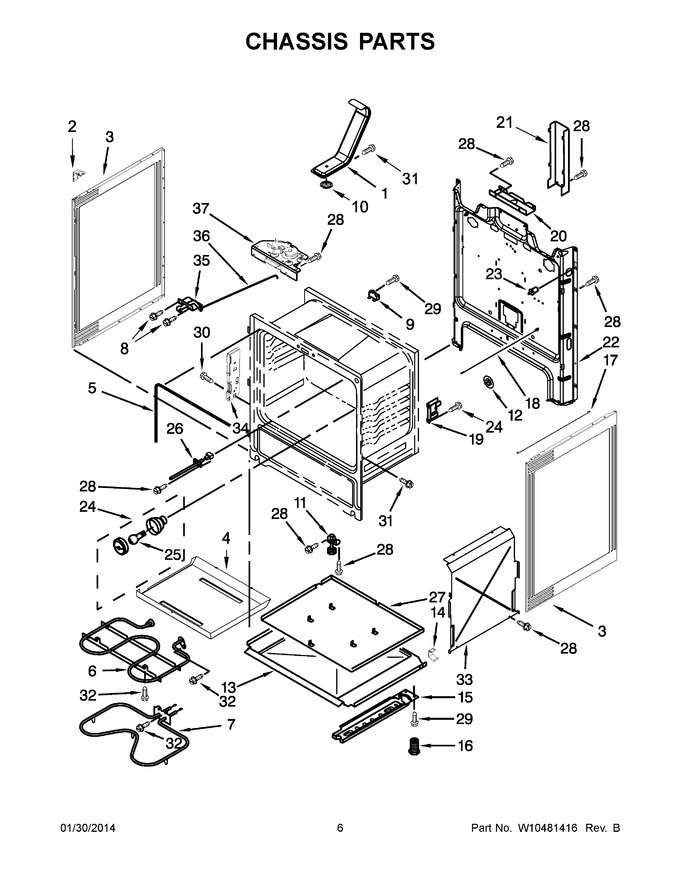

04 - Chassis Parts


05 - Drawer And Rack Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 250.48
2	W10183541		Clip, Spring Steel		Appelez-nous	-
3	WPW10575396		Panel, Side (white)   (Replaces: W10322769)				$ 148.71
3	W11730303		Panel, Side (black)   (Replaces: W10322770)			Immediately	$ 164.83
4	W10183712		Tray, Hidden Bake				$ 232.33
5	W11542153		Seal, Door   (Replaces: 8522416)			Immediately	$ 50.20
6	W10856603		Element, Broil   (Replaces: W10308476)			Immediately	$ 154.62
7	WP9755770		Element, Bake (hidden)   (Replaces: W10308474)			Immediately	$ 117.66
8	W11169708		Screw   (Replaces: 3196560)				$ 13.36
9	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 47.71
10	9761301		Screen, Vent				$ 140.86
11	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 32.59
12	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.79
13	W10134121		Tray, Insulation				$ 42.62
14	W10137382		Clip, Panel			Immediately	$ 46.11
15	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 59.68
15	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 59.68
16	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.85
17	W10465685		Rod, Insulation Retainer		Appelez-nous	-
18	9757239		Rod, Door Switch				$ 91.78
19	W10404688		Clip, Oven Support				$ 16.85
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 132.95
22	W10289149		Back, Main				$ 72.39
23	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 144.44
24	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
26	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 106.83
27	W10134125		Shield, Heat				$ 151.78
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
29	3196172		Screw			Immediately	$ 12.83
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
31	WPW10067840		Screw   (Replaces: W10067840)				$ 7.76
32	WP3196174		Screw, Grounding   (Replaces: 3196174)			Immediately	$ 7.82
33	W10450380		Retainer, Insulation		Appelez-nous	-
34	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
35	WP9761013		Assembly, Door Latch (front)   (Replaces: 9761013)				$ 244.15
36	W10078380		Rod, Latch				$ 90.39
37	WPW10107820		Assembly, Door Latch (rear)   (Replaces: W10107820)				$ 294.81
NI	WPW10208653		Insulation, Wrap   (Replaces: W10208653)			Immediately	$ 55.47
NI	W10326347		Insulation, Back		Appelez-nous	-
NI	W11684918		Insulation, Flue   (Replaces: W10333344)			Immediately	$ 33.79
NI	W10646923		Card, Insulator   (Replaces: 9759689)				$ 18.64

    View Diagram in Separate Window       Print Part List
