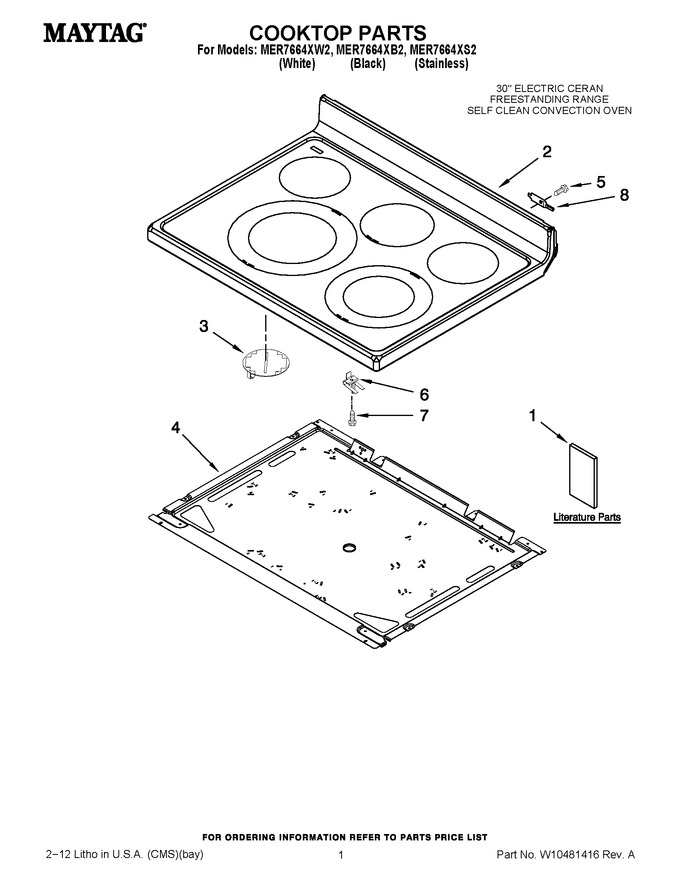

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10432691 | Tech Sheet |
|
- | |||||
| 1 | W10403811 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Brochure, Tips (safe Cooking) |
|
- | |||||
| 1 | W10419382 | Owner?s Manual |
|
- | |||||
| 2 | W10487156 | Cooktop (black) (Replaces: W10473598) |
|
- | |||||
| 2 | W10487155 | Cooktop (white) (Replaces: W10473593) |
|
- | |||||
| 3 | W11047668 | Element, Surface Warm Zone (Replaces: W10388271) |
|
$ 132.95 | |||||
| 4 | W11728329 | Pan, Radiant Elmt (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 8 | WP3195060 | Hinge, Pin (Replaces: 3195060) |
|
Immediately | $ 13.18 |
