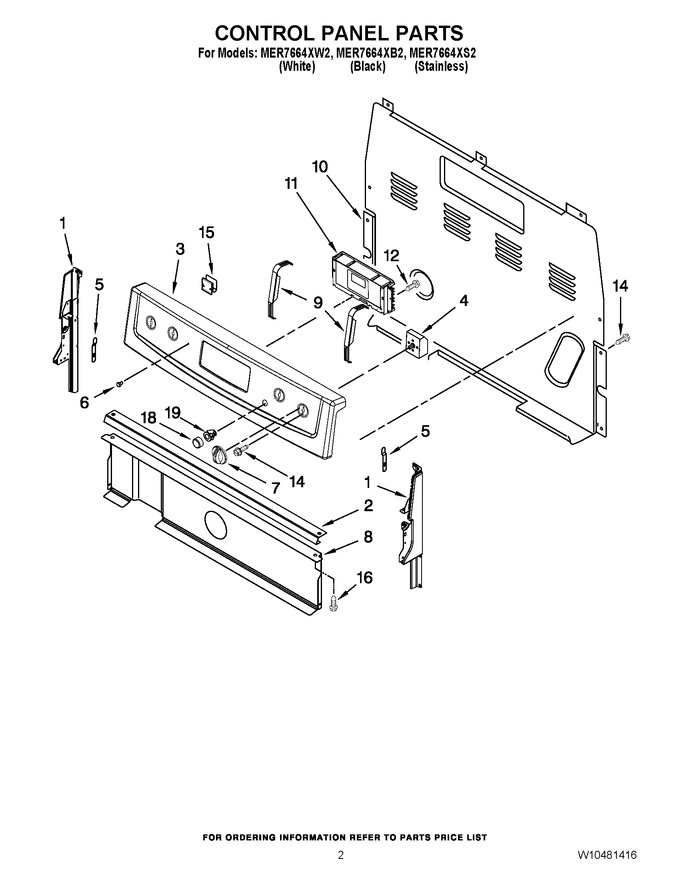

MER7664XW2 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W11219365	Endcap (white Lh) (Replaces: W10184433)			$ 42.45
1	W11219370	Endcap (white Rh) (Replaces: W10184434)			$ 60.83
1	W11219664	Endcap (black Lh) (Replaces: W10184437)			$ 153.83
1	W11219665	Endcap (black Rh) (Replaces: W10184438)			$ 45.17
2	W10525121	Bracket, Console (Replaces: W10182322)			$ 98.85
3	W10315964	Panel, Control (white)	Appelez-nous	-
3	W10315965	Panel, Control (black)	Appelez-nous	-
3	W10315966	Panel, Control (stainless)	Appelez-nous	-
4	WPW10434452	Switch, Infinite (dual) Rf,lf) (Replaces: W10434452)		Immediately	$ 140.84
4	5500-287	Switch, Infinite (lf,rr) (Replaces: 3148951)		Immediately	$ 52.39
5	3196200	Clip, Spring			$ 10.45
6	WP3196068	Lens, Indicator (Replaces: 3196068)		Immediately	$ 6.26
7	W11193834	Knob, Infinite (black) (Replaces: W10211372)			$ 88.98
7	WPW10211371	Knob, Infinite (white) (Replaces: W10211371)		Immediately	$ 21.23
8	W10134247	Shield, Heat		Immediately	$ 358.82
9	W11230932	Brkt, Mntg Eoc (Replaces: W10138683)		Immediately	$ 84.81
10	WP8272473	Cover, Rear (Replaces: 8272473)			$ 219.04
11	WPW10476673	Control, Range (white) (Replaces: W10271759)			$ 461.04
11	WPW10476673	Control, Range (black) (Replaces: W10271760)			$ 461.04
12	WP3196557	Screw (Replaces: 3196169)		Immediately	$ 7.95
14	WP3400882	Screw (Replaces: 3400882)		Immediately	$ 7.55
15	WP8273564	Clip, Cover (Replaces: 8273564)			$ 12.66
16	WP3196175	Screw (Replaces: 3196165)		Immediately	$ 7.55
18	9757492	Button, Keep Warm (white)			$ 96.01
18	9758491	Button, Keep Warm (black)			$ 19.74
19	W10217758	Bezel, Keep Warm (black)			$ 28.65
19	W10217760	Bezel, Keep Warm (white)			$ 25.91
