SELECT A DIAGRAM

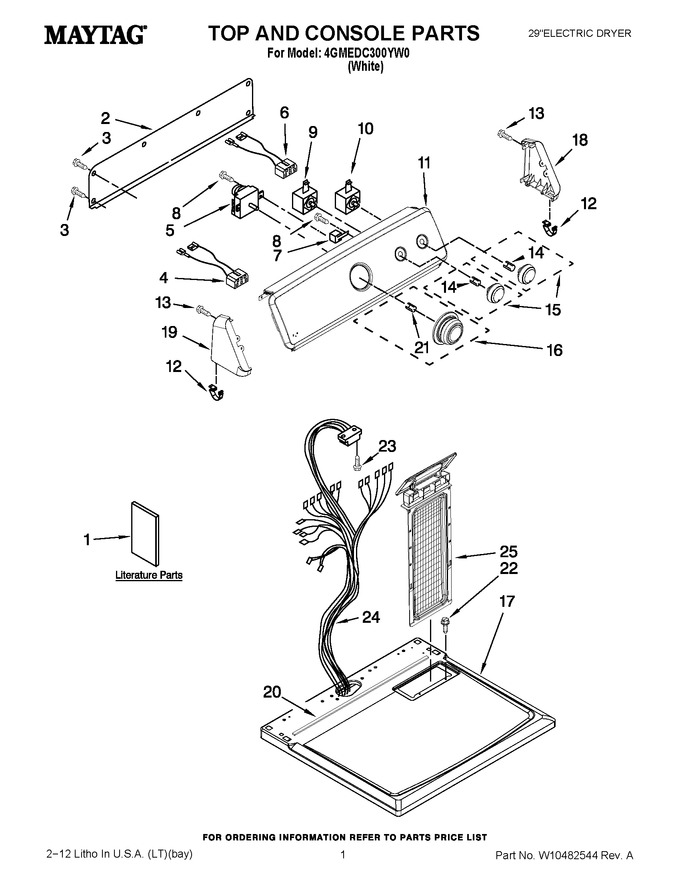

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10454274		Installation, Instruction		Appelez-nous	-
1	W10454277		Use & Care Guide		Appelez-nous	-
1	8578889		Wiring Diagram		Appelez-nous	-
2	W10103406		Panel, Rear				$ 135.31
3	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
4	W10113080		Wire, Jumper (buzzer On/off)		Appelez-nous	-
5	WP3979617		Timer, 60 Hz.   (Replaces: 3979617)			Immediately	$ 385.79
6	W10110861		Assembly, Jumper Wire		Appelez-nous	-
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
10	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
11	W10365104		Console Panel & Bracket Assembly		Appelez-nous	-
12	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
13	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 8.25
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 63.33
16	WPW10317454		Timer Knob & Dial Assembly   (Replaces: W10317454)				$ 63.47
17	WPW10225059		Top & Seal Assembly   (Replaces: W10225059)				$ 250.69
18	WPW10193821		Endcap Assembly (r.h.)   (Replaces: W10193821)				$ 74.72
19	WPW10193824		Endcap Assembly   (Replaces: W10193824)				$ 74.39
20	W10316616		Seal-foam				$ 27.79
21	WP688805		Spring, Clip Knob   (Replaces: 688805)			Immediately	$ 8.20
22	W11693756		Screw, 10-16 X 1/2   (Replaces: 688983)			Immediately	$ 14.76
23	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
24	W10386313		Harness, Wiring		Appelez-nous	-
25	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63

    View Diagram in Separate Window       Print Part List
