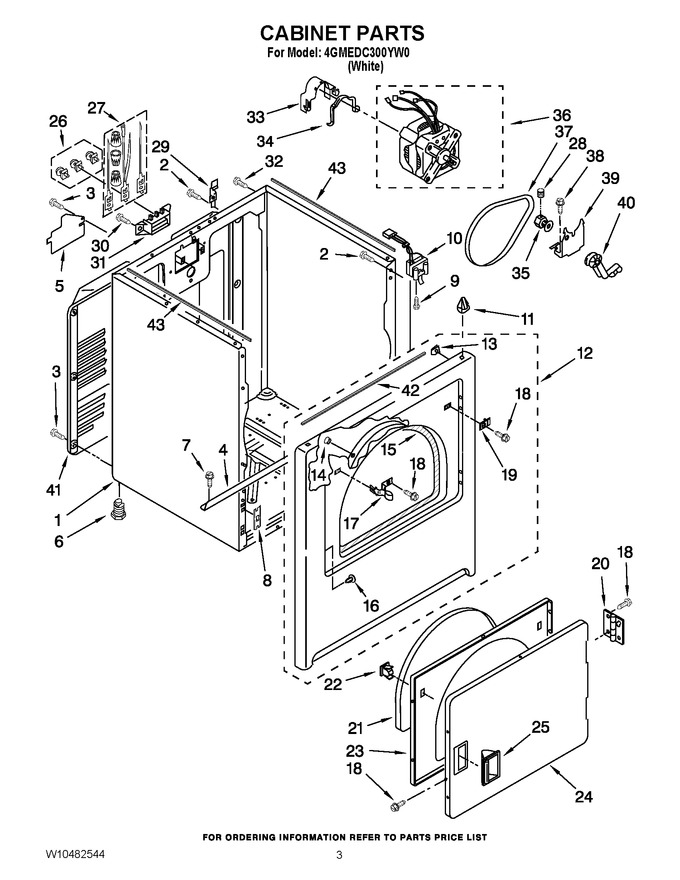

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10224934 | Cabinet (includes Item 4) |
|
$ 366.38 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 7 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 8 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 9 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 10 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 11 | WP8066092 | Lock, Front Top (2) (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 12 | WPW10224856 | Front Panel & Seal Assembly (Replaces: W10224856) |
|
$ 364.76 | |||||
| 13 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 14 | 279220 | Clip, Felt Pad (3) (Replaces: 685203) |
|
$ 23.55 | |||||
| 15 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 16 | WP3404413 | Plug-hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 17 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 18 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 19 | WP3403630 | Plug-strike (Replaces: 3403630) |
|
$ 7.91 | |||||
| 20 | WPW10362431 | Hinge, Door (Replaces: W10362431) |
|
Immediately | $ 8.28 | ||||
| 21 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 58.69 | ||||
| 22 | WP3389441 | Catch, Door Assembly (Replaces: 3389441) |
|
Immediately | $ 6.20 | ||||
| 23 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 208.71 | |||||
| 24 | W10861227 | Door Front (Replaces: 3402335) |
|
$ 269.26 | |||||
| 25 | W11109500 | Handle, Door (Replaces: 8565970) |
|
$ 87.79 | |||||
| 26 | 279393 | Terminal Block Kit For Terminal Block |
|
Immediately | $ 55.66 | ||||
| 27 | 279318 | Terminal, Tinned & Brass (3) (includes Item 26) |
|
Immediately | $ 106.04 | ||||
| 28 | 690046 | Screw, Set |
|
- | |||||
| 29 | WP8066217 | Hinge, Top (2) (Replaces: 8066217) |
|
$ 8.21 | |||||
| 30 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 31 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 32 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 8533974) |
|
$ 8.20 | |||||
| 33 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 34 | WPW10121316 | Clamp, Motor (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 35 | W11233559 | Pulley, 60 Hz. (Replaces: 685011) |
|
$ 119.58 | |||||
| 36 | W11618508 | Motor Assembly 60 Hz. (Replaces: W10289660) |
|
$ 365.52 | |||||
| 37 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 38 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 40 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 41 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 358.37 | |||||
| 42 | W10316619 | Seal, Spill Gaurd |
|
$ 28.21 | |||||
| 43 | WPW10157932 | Foam Seal (iec) (Replaces: W10316529) |
|
Immediately | $ 8.45 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
