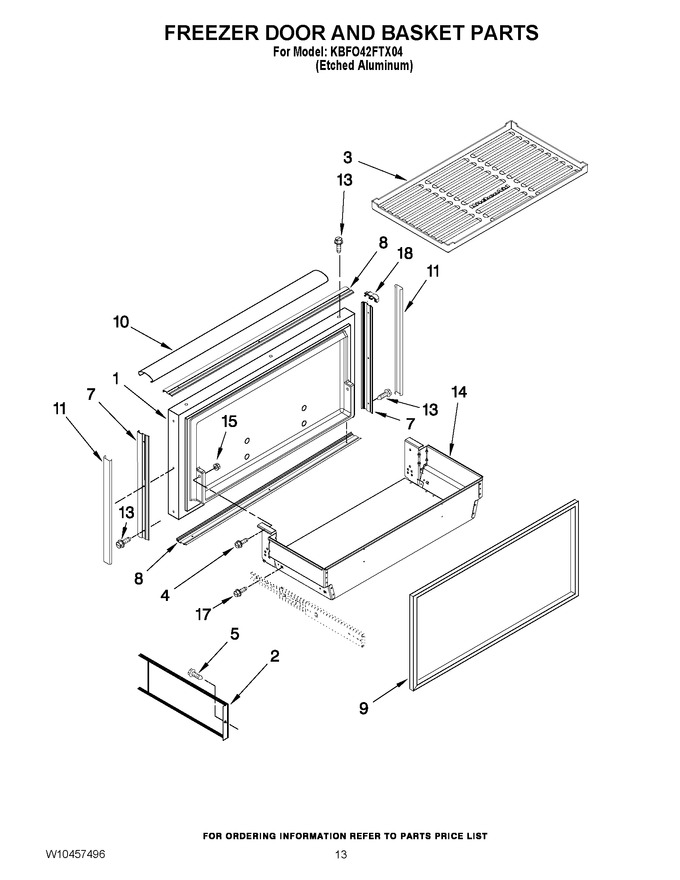

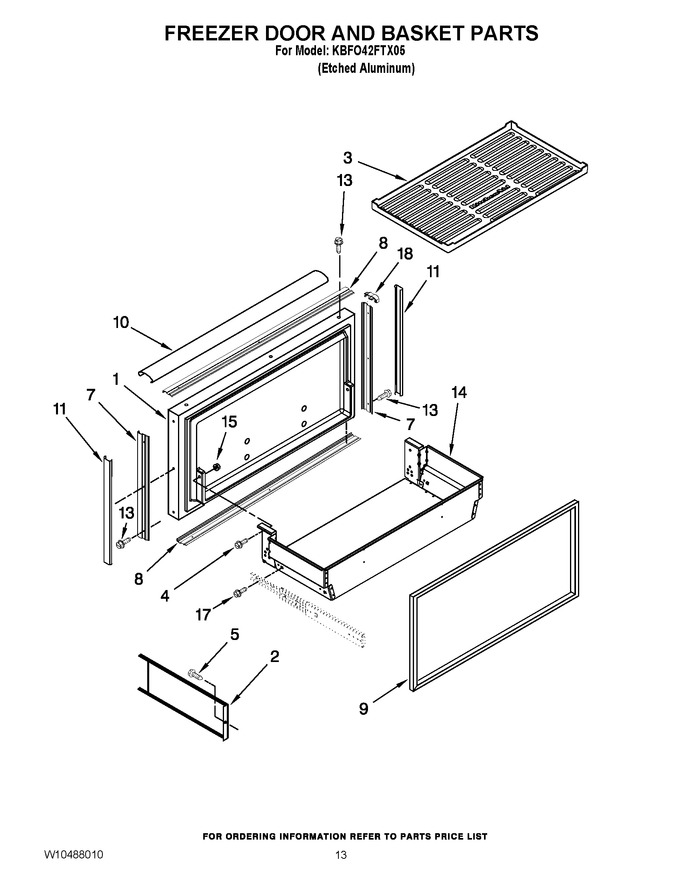

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258747		Freezer Door (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: 2314024)				$ 283.65
4	W10135775		Screw, 5/16 X 3/4				$ 14.93
5	WP488234		Screw, 8/32 X 1/4   (Replaces: W10135792)				$ 7.08
7	2313999S		Trim-door, Side				$ 216.57
8	2313998S		Trim-door, Top & Bottom				$ 290.87
9	WPW10192907		Door Gasket, Magnetic   (Replaces: W10192907)			Immediately	$ 363.09
10	2309033S		Cover-trim, Top				$ 86.05
11	2309213S		Cover-trim, Side				$ 91.94
13	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
14	W10258183		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
17	W10109030		Screw, 10-24 X 1/4(basket To Slide)				$ 15.35
18	2258903		Cap, Door Corner				$ 204.47
