SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts

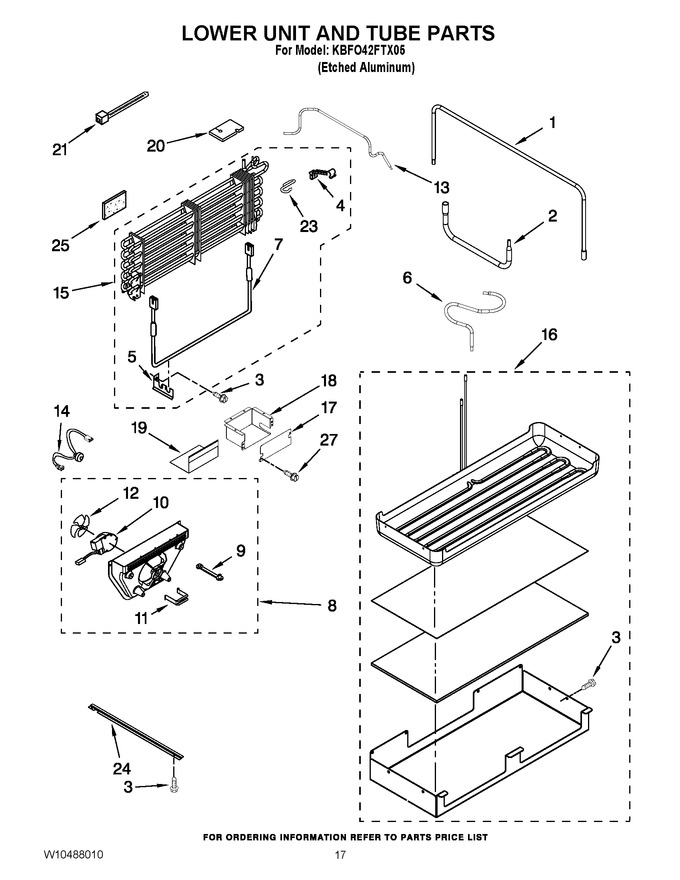

10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309072		Tube, Transition (condenser)		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 40.48
3	W11624204		Screw 8-15 X .530   (Replaces: 486194)				$ 14.72
4	2307944		Clip, Heater		Appelez-nous	-
5	2307945		Bracket, Mounting		Appelez-nous	-
6	W10431124		Tube, Suction				$ 32.73
7	W10219166		Heater, Defrost				$ 163.13
8	2306178		Scroll Assembly (includes Items 9, 10, 11 & 12)		Appelez-nous	-
9	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 15.93
10	2259385		Motor, Fan				$ 84.74
11	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
12	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
13	W10404239		Tube, Discharge		Appelez-nous	-
14	W10139165		Defrost Bi-metal				$ 85.95
15	W10195924		Evaporator (includes Items 4, 5, 7 & 23)				$ 361.90
16	W11623101		Drain Pan Assembly   (Replaces: W10281063)			Immediately	$ 394.02
17	W11756952		Cover-box, Wire   (Replaces: W10321048)		Appelez-nous	-
18	W10316077		Cover-wiring, Btm		Appelez-nous	-
19	W10321050		Shield-wiring, Cvr		Appelez-nous	-
20	2306180		Block, Evaporator Water Filter		Appelez-nous	-
21	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
23	2317920		Clip, Defrost		Appelez-nous	-
24	2320554		Bracket, Drain Pan		Appelez-nous	-
25	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 14.77
27	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
