SELECT A DIAGRAM

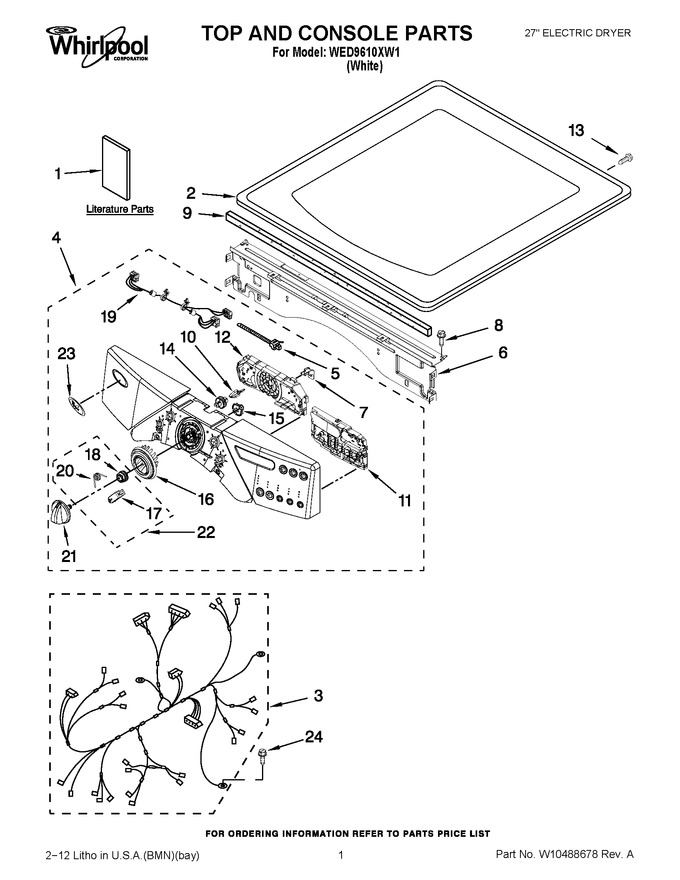

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10477028		Use & Care Guide		Appelez-nous	-
1	W10471644		Installation, Instruction		Appelez-nous	-
1	W10298850		Tech Sheet		Appelez-nous	-
2	3980634		Top (white)		Appelez-nous	-
3	W10111068		Harness, Main		Appelez-nous	-
4	W10255229		Panel, Console				$ 393.71
5	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
6	W10215656		Bracket, Console				$ 72.06
7	W10112268		Clip, Harness		Appelez-nous	-
8	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
9	W10112267		Foam-seal				$ 97.53
10	W10012480		Array-power   (Replaces: W10030070)				$ 17.15
11	W10279773		User Interface (right)				$ 262.92
12	W10279709		User Interface, (center) (includes: Illustration 13)				$ 232.06
13	WP488729		Screw, 8-32 X 1/32   (Replaces: 3390647)			Immediately	$ 8.28
14	W10012430		Encoder-wheel				$ 21.85
15	W10012440		Retainer-snap				$ 12.36
16	W10250089		Knob, Light Ring (includes: Illustration 15)				$ 13.46
17	W10012810		Rast, Wheel Holder (service Only With Illus. 22 )		Appelez-nous	-
18	W10133763		Detent Wheel (service Only With Illus. 22 )		Appelez-nous	-
19	W10242906		Harness, Communication				$ 170.16
20	W10012820		Knob, Spring (service Only With Illus. 22 )		Appelez-nous	-
21	W10190685		Knob, Control (includes: Illus. 21 ) (white)				$ 68.80
22	W10012480		Encoder, Wheel Kit. (includes Item: 17, 18, & 20 )				$ 17.15
23	W10117943		Badge		Appelez-nous	-
24	WP693995		Screw, Ground   (Replaces: 693995)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
