SELECT A DIAGRAM

01 - Top And Console Parts

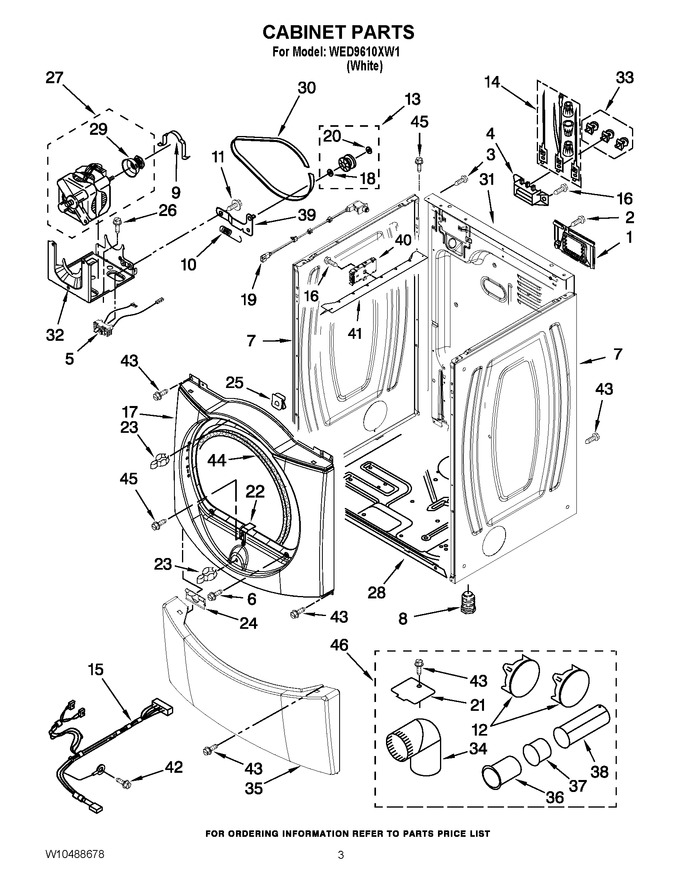

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 8.20
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
7	W11233548		Panel, Side   (Replaces: W10468495)				$ 261.33
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 106.04
15	W10242904		Harness, Digital Interface				$ 98.35
16	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
17	W10180423		Front Panel				$ 139.69
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.55
19	W10128087		Assembly, Door Switch				$ 95.53
20	WPW10512946		Tri Ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10354249		Cover-plate   (Replaces: W10354249)				$ 9.41
22	8529053		Ramp, Door				$ 51.37
23	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
24	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
25	62825		Clip-s Type				$ 8.11
26	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
27	279787		Motor, Assembly 60 Hz.   (Replaces: W10396028)			Immediately	$ 235.65
28	W10239098		Base, Cabinet				$ 148.45
29	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10487430		Panel, Rear   (Replaces: W10247569)			Immediately	$ 357.12
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 28.16
35	W10246269		Toe-panel (white)				$ 89.75
36	WP8563747		Exhaust Pipe   (Replaces: 8563747)				$ 95.95
37	WPW10331278		Exhaust Pipe (short)   (Replaces: W10331278)				$ 82.90
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	W10256719		Control Board				$ 288.42
41	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
42	WP693995		Screw, Ground   (Replaces: 693995)			Immediately	$ 7.55
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
NI	49621		Foot-optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65

    View Diagram in Separate Window       Print Part List
