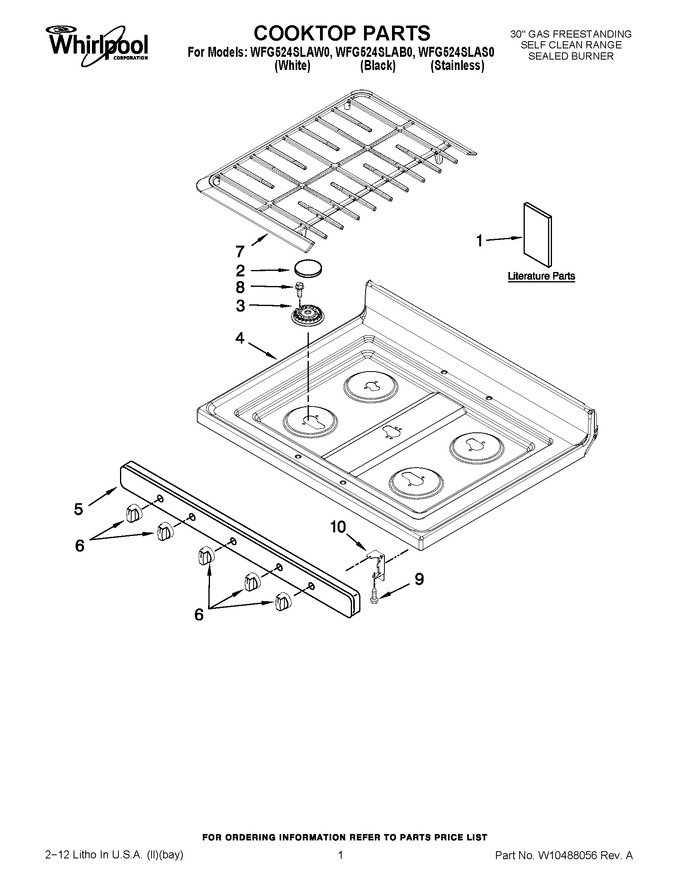

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403809 | Installation Instructions |
|
- | |||||
| 1 | W10394387 | Owners Manual |
|
- | |||||
| 1 | W10357517 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WPW10183374 | Set, Burner Cap (Replaces: W10183374) |
|
$ 200.18 | |||||
| 3 | WPW10406283 | Burner (lr/center) (Replaces: W10406283) |
|
$ 78.02 | |||||
| 3 | WPW10406243 | Burner (rr) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 3 | WPW10406878 | Burner (lf/rf) (Replaces: W10406878) |
|
$ 107.48 | |||||
| 4 | W10366730 | Cooktop (black) |
|
- | |||||
| 4 | W10366729 | Cooktop (white) |
|
- | |||||
| 5 | W10444452 | Panel, Manifold (white) |
|
$ 303.43 | |||||
| 5 | W10444453 | Panel, Manifold (black) |
|
- | |||||
| 6 | WPW10339443 | Knob, Control (white) (Replaces: W10339443) |
|
$ 21.54 | |||||
| 6 | WPW10339442 | Knob, Control (black) (Replaces: W10339442) |
|
Immediately | $ 18.09 | ||||
| 7 | W11394363 | Set, Grate Burner (Replaces: W10447923) |
|
$ 357.58 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- |
