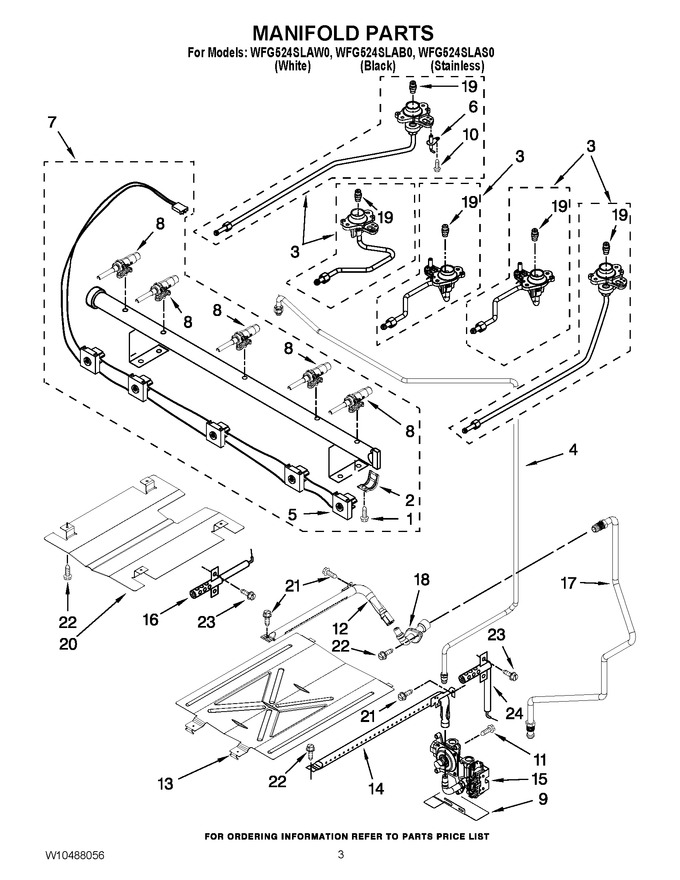

03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | W10949105 | Bracket, Mounting (Replaces: W10295996) |
|
$ 22.75 | |||||
| 3 | WPW10347410 | Tubing, Burner W/orifice (right Front) (Replaces: W10347410) |
|
$ 111.56 | |||||
| 3 | WPW10157415 | Tubing, Burner W/orifice (right Rear) (Replaces: W10157415) |
|
$ 115.46 | |||||
| 3 | WPW10157419 | Tubing, Burner W/orifice (center) (Replaces: W10157419) |
|
$ 114.78 | |||||
| 3 | W10157418 | Tubing, Burner W/orifice (left Rear) |
|
$ 49.23 | |||||
| 3 | W10347411 | Tubing, Burner W/orifice (left Front) |
|
$ 45.63 | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 159.35 | |||||
| 5 | WPW10413868 | Harness, Igniter (w/switches) (Replaces: W10413868) |
|
$ 198.36 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10216419) |
|
Immediately | $ 36.72 | ||||
| 7 | WPW10413870 | Assembly, Manifold (Replaces: W10413870) |
|
$ 324.60 | |||||
| 8 | WPW10279614 | Valve (left Rear) (Replaces: W10279614) |
|
$ 279.81 | |||||
| 8 | WPW10279615 | Valve (left & Right Front) (Replaces: W10279615) |
|
$ 258.91 | |||||
| 8 | WPW10247744 | Valve (right Rear) (Replaces: W10247744) |
|
$ 280.12 | |||||
| 9 | W10224921 | Bracket, Regulator |
|
- | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 239.36 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | WPW10602001 | Valve/regulator (Replaces: W10224914) |
|
$ 340.97 | |||||
| 16 | WP8054129 | Electrode, Broil (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | W10420040 | Tubing (broiler Fitting To Valve) |
|
$ 194.54 | |||||
| 18 | W10340259 | Fitting, Broiler |
|
- | |||||
| 19 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 19 | WPW10170508 | Orifice, Burner (left Rear) (Replaces: W10170508) |
|
$ 95.21 | |||||
| 19 | WPW10347414 | Orifice, Burner (left & Right Front) (Replaces: W10347414) |
|
$ 90.50 | |||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | 3196265 | Screw |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 23 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 24 | WP9758079 | Electrode, Bake (Replaces: 9758079) |
|
Immediately | $ 41.01 | ||||
| NI | WPW10170516 | Lp Kit, Surface Burners (Replaces: W10170516) |
|
$ 111.52 | |||||
| NI | WPW10400495 | Orifice, Lp Bake (Replaces: W10400495) |
|
$ 94.32 | |||||
| NI | WPW10400498 | Orifice, Lp Broil (Replaces: W10400498) |
|
$ 116.21 |
