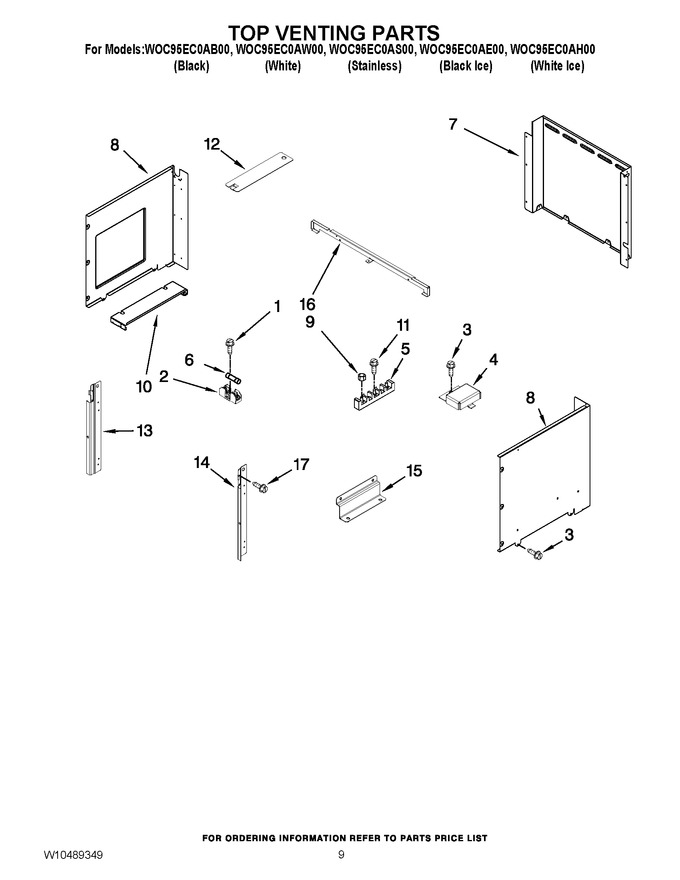

07 - Top Venting Parts


08 - Microwave Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
2	4454949		Holder, Fuse				$ 90.70
3	4448040		Screw		Appelez-nous	-
4	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
5	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
6	WPW10017410		Fuse   (Replaces: W10017410)			Immediately	$ 21.17
7	W10283000		Chassis, Back Combo		Appelez-nous	-
8	W10283029		Side, Combo (right)				$ 81.31
8	W10283028		Side, Combo (left)				$ 79.57
9	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 7.19
10	W10356644		Support, Microwave Module		Appelez-nous	-
11	W11684512		Screw   (Replaces: 3400080)				$ 14.10
12	W10356437		Cover, Slot Module		Appelez-nous	-
13	W10360516		Rail, Lh				$ 80.64
14	W10360518		Rail, Rh				$ 80.64
15	W10283024		Side, Bracket				$ 75.10
16	W10283022		Support, Crossbar				$ 77.45
17	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.75
