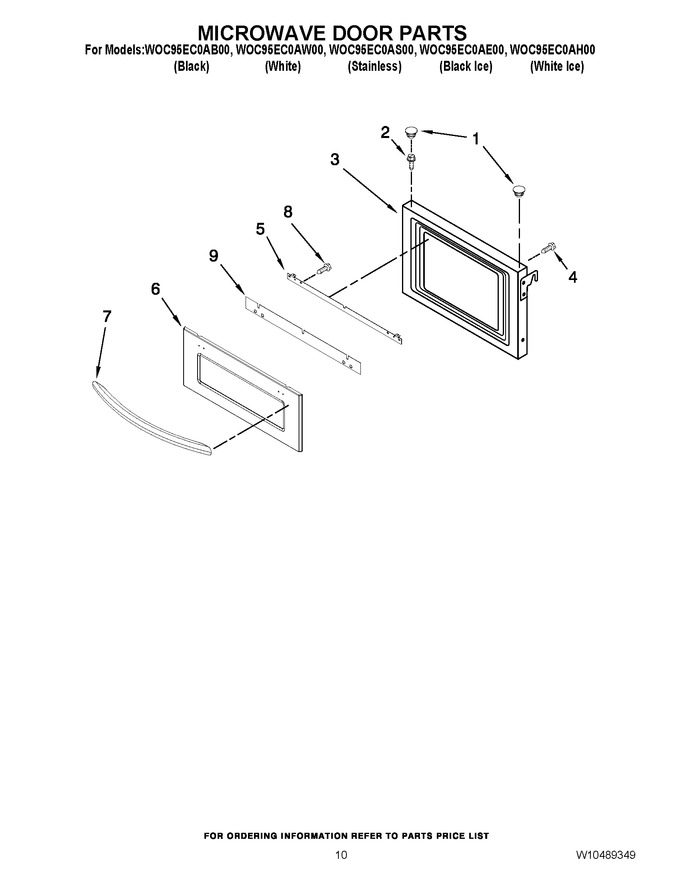

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
3	W10486210		Door, Inner				$ 218.34
4	WP4449154		Screw (4)   (Replaces: 4449154)				$ 8.16
5	W10407600		Bracket, Door				$ 42.98
6	W10352610		Door, Outer Glass Kit (black)		Appelez-nous	-
6	W10577920		Door, Outer Glass Kit (white)   (Replaces: W10352611)		Appelez-nous	-
6	W10577914		Door, Outer Glass Kit (stainless)   (Replaces: W10329466)				$ 351.15
6	W10585728		Door, Outer Glass Kit (black Ice)   (Replaces: W10416193)				$ 382.37
6	W10585729		Door, Outer Glass Kit (white Ice)   (Replaces: W10416194)				$ 396.84
7	W10327379		Handle, Door (black)				$ 210.08
7	W10327380		Handle, Door (white)				$ 208.07
7	W10327379		Handle, Door (stainless)   (Replaces: W10317136)				$ 210.08
8	WP7101P246-60		Screw   (Replaces: W10143304)				$ 8.24
9	W10359769		Foam, Handle				$ 14.76
