SELECT A DIAGRAM

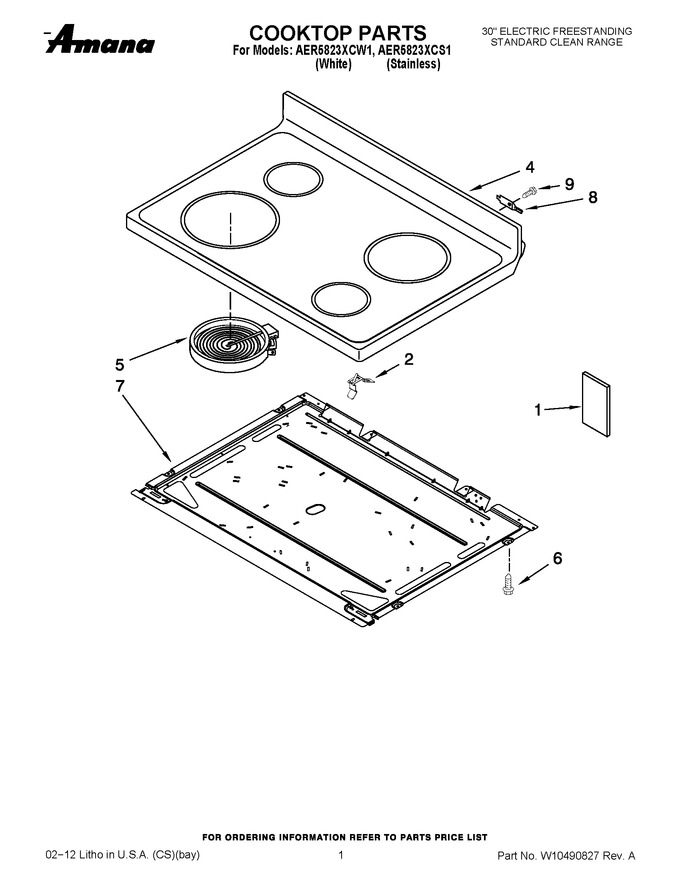

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Installation Instructions |
|
- | |||||
| 1 | W10419380 | Guide, Use & Care Tips |
|
- | |||||
| 1 | 9762761 | Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking (french) |
|
- | |||||
| 1 | W10384447 | Sheet, Tech (english) |
|
- | |||||
| 1 | W10384462 | Sheet, Tech (french) |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 4 | W10248202 | Cooktop (white) (Replaces: W10202165) |
|
$ 603.76 | |||||
| 4 | W10248201 | Cooktop (black) (Replaces: W10202162) |
|
$ 664.82 | |||||
| 5 | WPW10242957 | Element, Surface (2000w (lf-rr)) (Replaces: W10242957) |
|
$ 332.00 | |||||
| 5 | WP8523045 | Element, Surface (1500w (lr-rf)) (Replaces: 8523045) |
|
$ 314.18 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 9 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 |
