SELECT A DIAGRAM

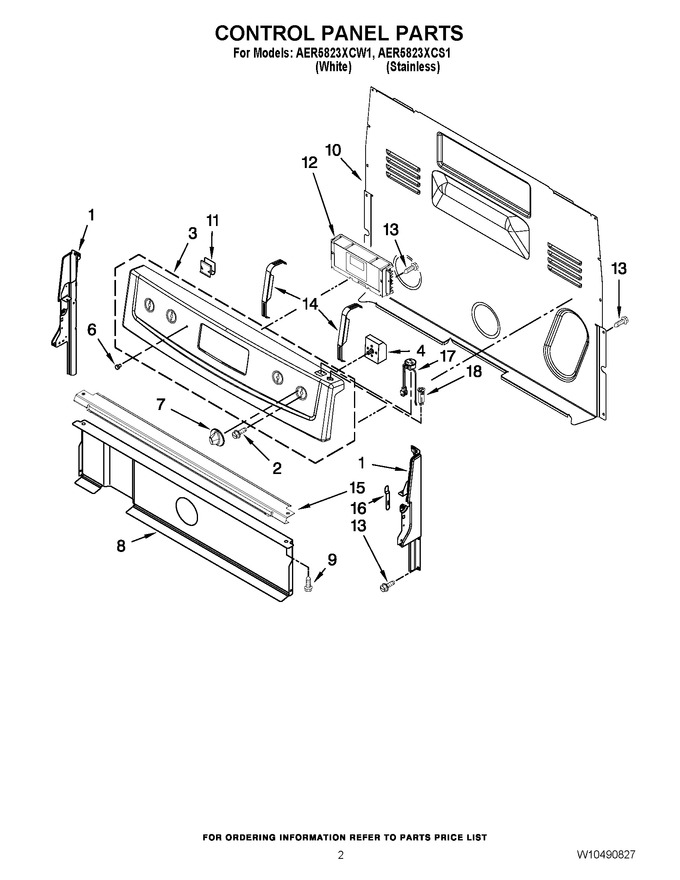

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 45.17
2	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
3	W10170030		Panel, Backguard (white)				$ 47.48
3	W10170032		Panel, Backguard (stainless)				$ 89.25
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
7	W10119705		Knob, Infinite (white)			Immediately	$ 53.17
7	W10119706		Knob, Infinite (black)				$ 52.90
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
11	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
12	W10363661		Control, Range (white)		Appelez-nous	-
12	W10363662		Control, Range (black)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W11230932		Brkt, Mntg Eoc   (Replaces: W10138683)			Immediately	$ 84.81
15	W10525121		Brkt-mntg,console   (Replaces: W10182322)				$ 98.85
16	3196200		Clip, Spring				$ 10.45
17	W10861164		Receptacle (black)   (Replaces: W10203475)			Immediately	$ 18.47
17	W10849725		Receptacle (white)   (Replaces: W10203476)			Immediately	$ 80.79
18	WP9757601		Circuit Breaker (white)   (Replaces: 9757601)			Immediately	$ 65.55
18	WP9757602		Circuit Breaker (black)   (Replaces: 9757602)			Immediately	$ 53.81

    View Diagram in Separate Window       Print Part List
