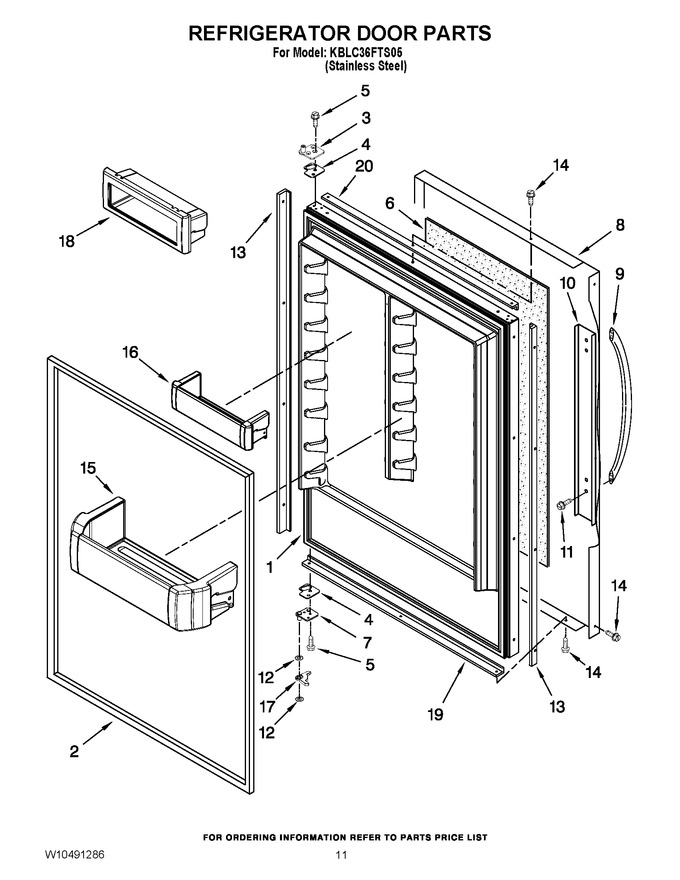

07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192039		Door, Refrigerator (includes Item 2)		Appelez-nous	-
2	2302709		Gasket, Door   (Replaces: 2300184)				$ 328.30
3	2266912		Hinge Assy, Top				$ 44.22
4	W11673500		Spacer-hinge   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw 10-32 X 5/8   (Replaces: W10162602)			Immediately	$ 8.63
6	2327469		Filler, Foam		Appelez-nous	-
7	2316807		Hinge Assy, Bottom				$ 216.30
8	2306488		Skin, Door		Appelez-nous	-
9	WP2316868		Handle   (Replaces: 2316868)			Immediately	$ 281.43
10	W10127710		Plate Door, Handle			Immediately	$ 25.94
11	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
12	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.76
13	2300026		Spacer, Door Edge		Appelez-nous	-
14	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
15	W10323749		Shelf, Door (gallon)				$ 136.84
16	W11590561		Shelf, Door   (Replaces: W10323603)				$ 94.23
17	W10188434		Gap Cover, Bottom				$ 67.95
18	W10323044		Utility Bin Assy				$ 132.58
19	2300023		Spacer, Door Edge - Bottom		Appelez-nous	-
20	2300024		Spacer, Door Edge - Top		Appelez-nous	-
